512 Taiwan Manufacturer Multifunctional High Efficiency Spring Coiler

FOB Price

US$ 55,000 - 60,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China		Brand Name	CHIEN YU
Model Number	CNC-50		After-sales Service Provided	Engineers available to service machinery overseas

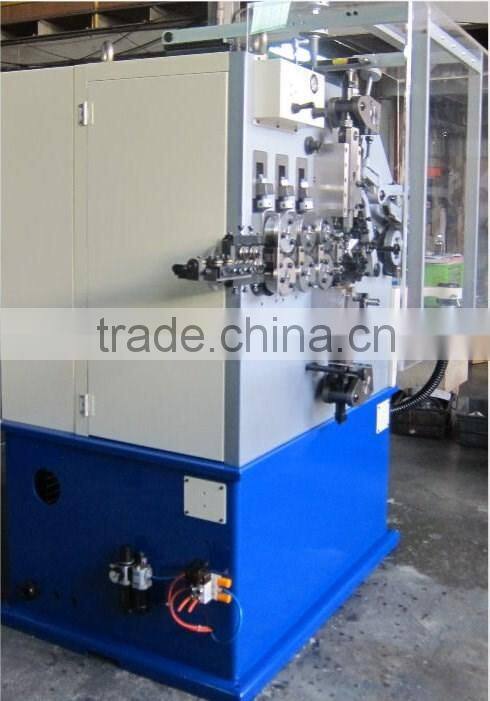

512 Taiwan Manufacturer Multifunctional High efficiency Spring Coiler

Model	CNC-50 Spring Coiling Machine
Wire Diameter	2.0mm ~ 5.0mm
Max. O.D.	80 mm
Max. Production Speed	100 pcs/min
Feed Length	Unlimited
Feed Speed	54 m/min
Feed (Y) Axis (kw)	15 kw
Cam (X) Axis (kw)	7.0kw
Monitor Display	Color / Chinese / English
Max. Value	X : 359.99 Y : 99999.99 mm
Min. Value	X : 0.01 Y : 0.01 mm
Memory	999 Programs Max. 250 Lines for each program
Machine Dimensions	200 x 130 x 200 cm
Wooden Case Dimension	224 x 182 x 224 cm
Machine Weights	2450 Kgs
Gross Weights	2900 Kgs
Power	220V 3P 50/60Hz

Wire Diameter suitable for 2.0 ~ 5.0 mm.
Max O.D. up to 80 mm.
2-axis control, for wire feed and pitch mechanism.
High precision equipped with CNC controlled servo-motion system
High production speed Max. up to 100 pcs/min..
Simplified setup and program with English/Chinese platform.
Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

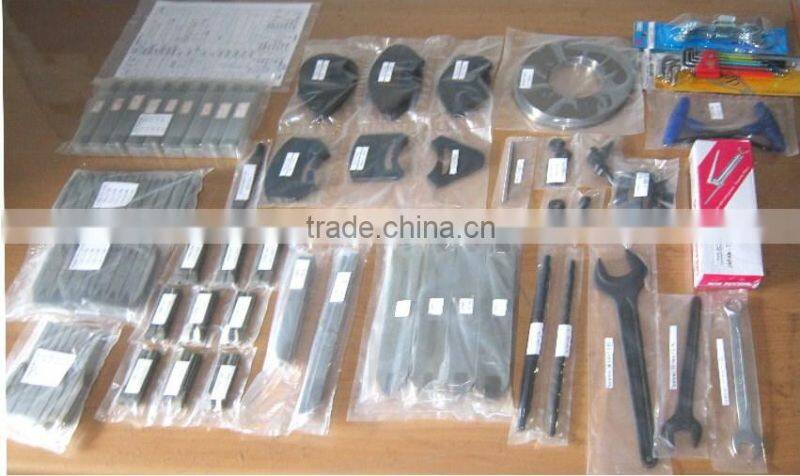

Tools + User Manual

Packaging & Shipping
