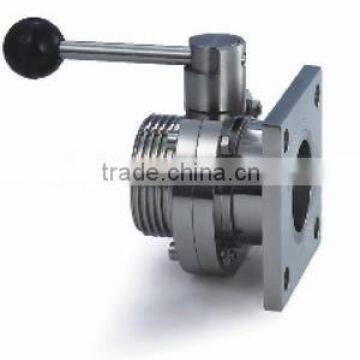

Weld Sanitary Butterfly Valve
- Fuzhou Shanghai Ningbo
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | 1"-6"&DN10-DN150 | |
| Place of Origin | Fujian, China | Model Number | WL-005 | |
| Brand Name | Wolong |
Product Description
Wolong
Fujian Wolong Pipe &Valve Manufacturing Co., Ltd. manufactures stainless steel sanitary fluid valves, pipes and fittings.
Based on fine technology background and resources, the company designs and produces 3A, SMS, DIN, BS, AS, DS, ISO, IDF, BPE and RJT sanitary standard pipe fittings and industrial standard pipe fittings to meet customers demands fully.
Its rich technology experience and consistent quality style ensure each pipe fitting in line with FDA and GMP requirements.
Specification
Product Name: | Weld Sanitary Butterfly Valve |
Material: | AISI304, AISI316L |
Size: | 1"-6"&DN10-DN150 |
Brand | Wolong |
Polished | mirror polished, sub-light, matt polished,180G, 240G, 400G,acid pickling |
Finish: | Internal surface:<0.8um,Seam surface:<1.6um,External:<1.0um |
| Welded,Clamp,Threaded, Flanged |
| SS304, SS316, SS304L, SS316L material out from precision CNC milling machined. |
Connection Mode: | Body can be changeable. And low torque, SMS, DIN 3A weld and male end, clamped |
Body: | Out from full machined, high polished. Ra less than 0.6um. 9.5 um, USA and Europe required. Electric polished and PTFE coating can be required |
| Different nylon re-force and stainless steel handle gripper, pull, press type |
| From 2 position - 12position, Desigh for your width range and beautiful choice. |
Gasket/Seal: | EPDM,SILICONE RUBBER,PTFE,Viton/FRD |
| Seal Service temp:RTVL-60~200DEGREE C |
| EPDM:-50~140DEGREE C |
| Viton: -40~200DEGREE C |
| Silicon::50℃~200℃ |
Working Principal: | manual operation or driving device operation |
Pressure: | Low pressure , 0bar -1.0Mpa(10bar) |
Thickness: | 1.2mm--2mm |
Standard: | SMS,DIN,3A,ISO,IDF,BS4825, |
Processing: | imported CNC machined by forged |
Certificate: | CE, ISO9001/2008, 3A,SGS |
Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, water etc |
Packaging Details: | Shrink wrapped - carton - pallet . Or as per the request of customers |
Delivery details: | Usually within 20 days after receiving T/T down payment |
Product show
Specification data
Factory overview
Packaging and delivery
Packaging detail:Shrink film, Carton
Delivery detail:30-60DAYS
Certification
Trade show
FAQ
Q: What is your payment?
A: We ususlly purchase 30% order earnest,70% before delivery goods
Q:What is your main market?
A:We have five years to export Australia,Many cooperationer in European Market.
Q:How about your capacity?
A:As you know,we have 100staffs,own two cut mechine,and 10pieces punch press,and 10 pieces lathe, and 20 people who responsible for polish. So please believe us we can delivery as you order.
Q:Can you give me a discount?
A: As you know,we are manufactory,so please believe us our price is competitive.If your orrder enough,we can consider give you a discount.
Q:Can i get free samples from your factory?
A: Yes,of course,we like to sent you free samples for your reference,however,freight you pay.
Q:If products have some quality problem,how would you deal with?
A:We will responsible for all the quality problems if this had happened.
