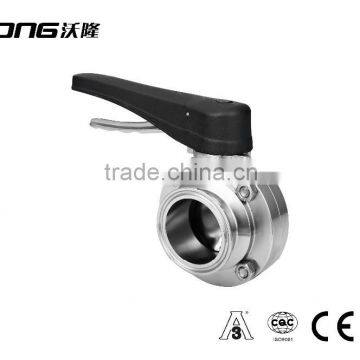

Stainless steel Sanitary Clamp butterfly Valve

Product Name:

Stainless steel Sanitary Clamp butterfly Valve

Material:

AISI304, AISI316L

Size:

1"-6"&DN10-DN150

Brand

Wolong

Polished

mirror polished, sub-light, matt polished,180G, 240G, 400G,acid pickling

Finish:

Internal surface:<0.8um,Seam surface:<1.6um,External:<1.0um

Welded,Clamp,Threaded, Flanged

SS304, SS316, SS304L, SS316L material out from precision CNC milling machined.

Connection Mode:

Body can be changeable. And low torque, SMS, DIN 3A weld and male end, clamped

Body:

Out from full machined, high polished. Ra less than 0.6um. 9.5 um, USA and Europe required. Electric polished and PTFE coating can be required

Different nylon re-force and stainless steel handle gripper, pull, press type

From 2 position - 12position, Desigh for your width range and beautiful choice.

Gasket/Seal:

EPDM,SILICONE RUBBER,PTFE,Viton/FRD

Seal Service temp:RTVL-60~200DEGREE C

EPDM:-50~140DEGREE C

Viton: -40~200DEGREE C

Silicon::-50℃~200℃

Working Principal:

manual operation or driving device operation

Pressure:

Low pressure , 0bar -1.0Mpa(10bar)

Thickness:

1.2mm--2mm

Standard:

SMS,DIN,3A,ISO,IDF,BS4825,

Processing:

imported CNC machined by forged

Certificate:

CE, ISO9001/2008, 3A,SGS

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic, water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers

Delivery details:

Usually within 20 days after receiving T/T down payment
