Home > Products > booster compressor > 40bars BC330 Booster Air Compressor
40bars BC330 Booster Air Compressor
- Shanghai Or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Type | Piston | Configuration | Stationary | |
| Power Source | AC Power | Lubrication Style | Lubricated | |
| Mute | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | HENGDA | Model Number | BC330 |
Product Description
Specifications
Hengda BC330 booster air compressor1.FAD:4.0m3/min
2.Working pressure:40bars
3.Motor:15KW
4.CE certificate

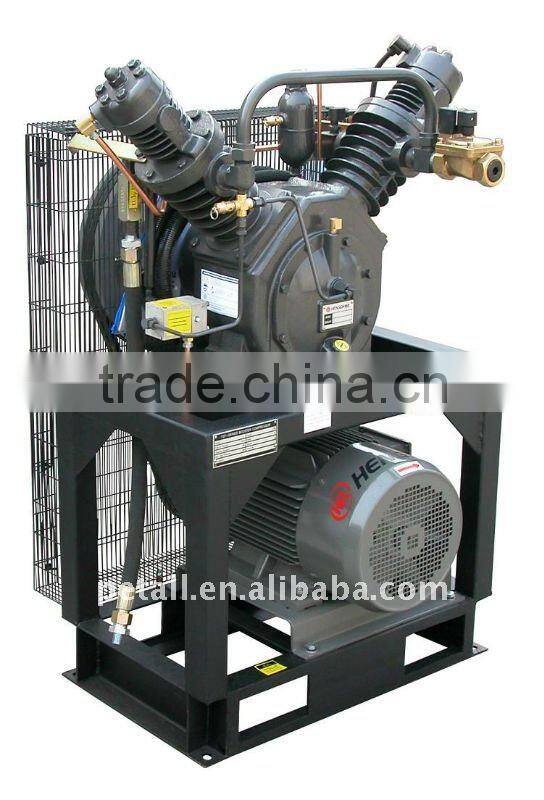

Hengda BC330 booster air compressor
The high pressure screw compressor system
To meet the requirements of PET bottle blowing industry, the high pressure screw compressor system will compress air again from the screw compressor.
-Low-noise, stable air supply.
-System integrates compression, storage , and filtering of blown air with particle count less than 0.001 ppm.
-Steel frame housing contains all components and does not require a foundation.
-The system is cooled with air not water. Saving cooling and maintenance costs.
Booster compressor
Model | Suction capacity M3/min | FAD M3/min | Motor KW | Speed rpm | Size mm | Weight kg | |
Single stage, Max. pressure 4.0Mpa | |||||||
Suction pressure 0.9-1.0Mpa | |||||||
BC260-10 | 2.55 | 2.0 | 15 | 950 | 1310*745*790 | 430 | |
BC330-10 | 3.25 | 2.5 | 15 | 800 | 1310*745*790 | 450 | |
BC430-10 | 4.2 | 3.2 | 18.5 | 1050 | 1140*800*1540 | 480 | |
BC560-10 | 5.5 | 4.2 | 22 | 900 | 1140*800*1540 | 500 | |
BC650-10 | 6.4 | 5.0 | 25 | 1050 | 1140*800*1540 | 530 | |
BC870-10 | 10.2 | 8.0 | 30 | 820 | 1140*800*1540 | 550 | |
BC1000-10 | 13.0 | 10.0 | 30 | 950 | 1140*800*1540 | 550 | |
