SD9 Big Power Bulldozer

We can offer bulldozers with type of 410, 320, 230, 220, 180, 160, 130, 100 and 80HP.
All of these models have standard types, swamp types, extra-swamp types, desert types, highland types, power-plant types, environmental protection types and forest types. They can be equipped with straight-tilt blades, angle blades, U-blades, environmental protection blades, swamp blades, standard cabin with air conditioner, roll-over-protective canopy for forest work and simple cabin under the request of the customers.

Features:
1) Engine: Cummins / Weichai / Styer

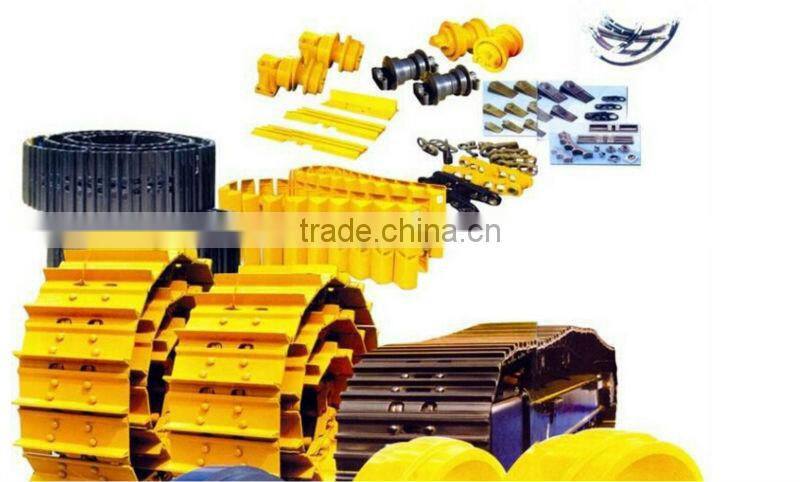

2) Track shoe: design and produce according to technology introduced

3) Carrier roller: according to the technology introduced

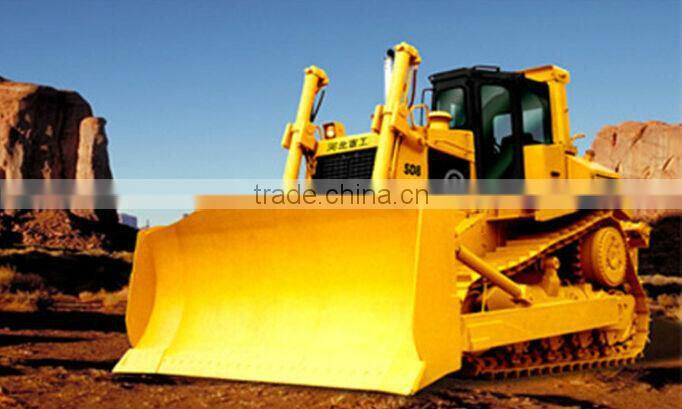

SD9 Bulldozer

Engine:

Type: Cummins KTA19-C525S10engine

Rated revelution: 1800rpm

Rate power:316 ( 430HP )

Dozer:                   Tilt

Operation weight with ripper: 44580kg

Ground pressure: 102kPa

Track gauge:    2250mm

Min. ground clearance  517mm

Gradient:           30°/25°

Dozing capacity:  13.5m3

Blade width:     4314mm

Max. digging depth: 614mm

Overall dimensions:

Without shank ripper: 6592x4314x3970mm

With shank ripper: 8478x4314x3970mm

Optional: Air conditioner
