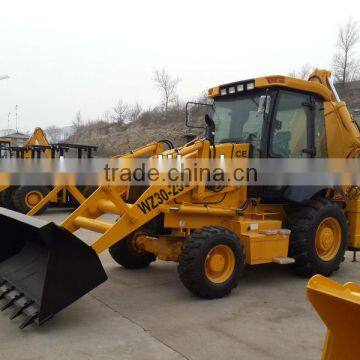

XCMG WZ30-25 Backhoe Loader With YUCHAI/Cummins Diesel Engine Joystick Control

Specifications

WZ30-25 BACKHOE LOADER

WITH:YUCHAI ENGINE,SHANTUI TRANSMISSION,SDLG AXLES.

PILOT CONTROL,A/C,EATON WORKING PUMPS,STANDARD BUCKETS,YELLOW

PRICE:33,800USD PER UNIT FOB CHINA PORT.

Packing: 1 unit put into one 40HC Container.

Warrantee: 2000work hours or 20 monthes after shipping date.

WZ30-25 Technological Parameters

I/ Overall Dimension

-LengthX Width X Height                        7550X 2300 X 3769(mm)

-Cab roof height                                  2900(mm)

-Wheel base                                    2250(mm)

-Track                                          1640(mm)

-Min. ground clearance                             300(mm)

II/ Main Technical Specification

-System Hydraulic pressure

load hydraulic system                                18Mpa

dig hydraulic system                                 20Mpa

steering hydraulic system                              12Mpa

-System Hydraulic flow                             120L/min

four-wheel drive ,whole hydraulic system

total operating weight                                   8500kgs

maximum speed                                       22Km/h

maximum gradient capacity                              30°

--------------------------------------------------------------------------------------

Loader End

-loading bucket capacity                                1.00m3

rated loading                                          1800KG

maximum articulated height of bucket                      3400(mm)

bucket discharge height                                  2795(mm)

bucket discharge distance                             1048(mm)

loading lift capacity                                 25KN

bucket hydraulic translation function                   yes

bucket lift time                                     6.8s

bucket lower time                                   2.5s

bucket discharge time                               1.2s

maximum tractive force                                 39KN

maximum breakout force                              38KN

----------------------------

Excavator end:

-backacter bucket capacity                                 0.3m3

backacter discharge height                           3878(mm)

maximum digging depth                            4080(mm)

maximum digging radius                             5688(mm)

bucket slewing angle                               190°

bucket digging capacity                               46KN

bucket stick digging capacity                           31KN

III/ Diesel engine

-Model                       /YUCHAI/       CUMMINS 4BT3.9 EIII ENGINE

-Yype                          inline,directinjection, four-stroke,liquid cooled

rated power                             85HP           90HP

rated speed                            2400r/min       2400 r/min

cylinder –internal diameter             4—105           4—110

maximum torque                   285NM         310NM

minimum fuel consumption           239g/kw.h       245g/kw.h

Displacement                      4.33L         4.5L

IV/ Transmission system

Model of hydraulic pump       fixed shaft power shift transmission

gear shift                      2-forward shift 2-reverse shift

Torque                                    YJ-280

drive pump                                 CDXaf3016-IL

flow                                     16ml/r

work pump                                CBGj2063

flow                                     63ml/r

V/ Steering system

Type                                        articulated hydraulic steering

model of steering control valve                BZZ5-250

model of turning control valve                YSF25S-00

steering angle                                left or right 36±1°

minimum turning radius                       5018(mm)

VI/ Axles

main transmission type       single reduction

wheel reduction type          Single wheel reduction

VII/ Wheel

tire size                            16/17-20

front wheel pressure                  0.22Mpa

rear wheel pressure                  0.20Mpa

service braking                      air over hydraulic disc on 4 wheels

parking brake                     manual parking brake

VIII/ Refill Capacity

fuel tank                       70L

transmission                     25L

front axle                       9L

rear axle                         9L

hydraulic tank                  140L
