Home > Products > Backhoe Loader > good price new backhoe loader WZ30-25 cummings engine

good price new backhoe loader WZ30-25 cummings engine

FOB Price

USD $30,000 - $35,000 / Unit

1 Unit(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	SDLG
Model Number	WZ30-25	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	757022363540mm	Rated Load	1800kg
Certification	iso	Warranty	1year
After-sales Service Provided	Overseas service center available

Product Description

Specifications

loader WZ30-25
Engine: YUCHAI engine,CUMMINS engine
Air condition,joystick
4 in 1 bucket, hammer

SDLG backhoe loader B680

ZOTGuided by market, bulid brand by quality, develop by innovation.

Introduction:

Shandong ZOT Machinery Co.,LTD. is a member of SDLG group , which is specialized in manufacturing wheel loader, backhoe loader, road roller, motor grader and other construction machinery. We devote ourselves to improving quality and building good brand. We need profit as well as long term business relationship.

Choosing ZOT machines is the first step to saving money!

Description of this product:

Engine
Model	CUMMINS (4BTA3.9-C100)
No. of cylinders	4 cyliners in line, Turbo-charged. water cooled
Bore and stroke	102x120 (mm)
Displacement	3.9L
Rated power	74kw/2400rpm
Max. torque	330N.m @1500RPM
Transmission system
Hydraulic torque converter	XN280
Drive Method (2 x 4 or 4 x 4)	4x4
Number of speed forward	2 (high/low speed)
Number of speed reverse	2 (high/low speed)
Speed
First forward	6 km/h/ 12km/h
Second forward	14.5 km/h/ 29km/h
First reverse	6 km/h/12km/h
Second reverse	14.5 km/h/ 29km/h
Axle
Axle type	Hub reduction axle
Front axle track	162 mm
Rear axel track	134 mm
Hydraulic system
Hydraulic Motor	Gear pump
Model	F1025, VHP2025
Flow rate	80 l/min
Working pressure	22.5 Mpa
Electrical system
Voltage	24 V
Alternator capacity	4 kw
Batterycapacity	210 Ah
General information
Total weight	7100 kg
Overall dimension	7400x2170x2950 mm
Turning radius	3500 mm
Backhoe volume	0.2-0.25 cbm
Loading bucket volume	0.8-1 cbm
Front wheels (size & ply rating)	12-16
Rear wheels (size & ply rating))	15-24
Diesel fuel tank	125 L
Hydraulic system fluid	132 L
Operating range
Loader
Maximum bucket reach	3850 mm
Maximum loading height	3300 mm
Maximum loader dumped height	2550 mm
Dumping distance from bucket to fender	810 mm
Wheelbase	2110 mm
Maximum transport length	7400 mm
Maximum loading depth	20-25 mm
Ground clearance	300 mm
Backhoe
Maximum dumping height	4250 mm
Maximum bucket reach	5250 mm
Maximum digging depth	3800 mm
Maximum digging reach from pivot point	5250 mm
Maximum digging reach from rear axle	5367 mm
Maximum height in transport position	3300 mm
Height to top of cab	2950 mm
Width	2170 mm

Some information you want to know:

Our warranty: because of high quality, we are confident to give our customers 2 years warranty!

Our service: Spare parts being supplied in time; Engineers is available to your place; service center is available in some country.

Shipping and packing: Being shipped by container, and naked packing.

Delivery time: within30days after getting deposit

Payment terms: 1. 30%deposit by TT, 70% balance before shipment or after the copy of B/L. 2. 100% Irrevocable L/C at sight.

Contact person: Mr.Gavin Mobile: 86 18615172419 skype: yxianqiang

My factory:

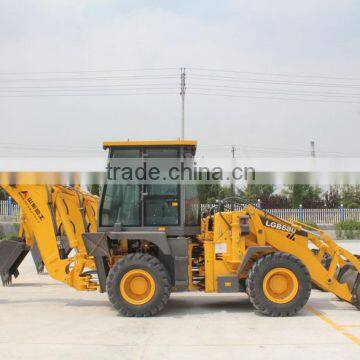

Backhoe Pictures:
