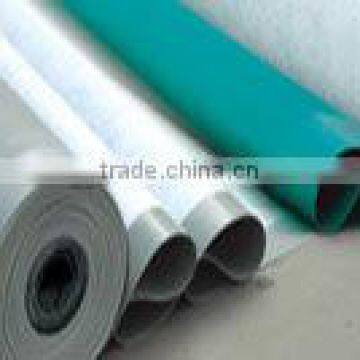

PVC Waterproofing for Roof

FOB Price

Negotiable / Square Meter

1000 Square Meters(Min. Order)

Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	hongyuan
Model Number	HPM

Product Description

Specifications

1.PVC waterproofing for roof
2.thickness:1.2mm,1.5mm,2.0mm
3.width:2.05m
4.length:20m
lor:white,gray

pvc waterproofing for roof

Introduction

Hongyuan Polyvinyl Chloride (PVC) waterproof membrane is a new polymer waterproof membrane which is made from polyvinyl chloride resin, and mixed with plasticizer, filler, antioxygen, ultraviolet absorber and other auxiliaries. Hongyuan adopts automatic mixing of raw material, double-screw extruder and delicate three-roller calender equipment in the PVC membrane production. Hongyuan PVC waterproof membrane features dimensional stability and high tensile strength, being a best choice for many civil and industrial project,

PVC Waterproof membrane
No.	Item		L		N		W
			I	II	I	II	I	II
1	Tensile strength N/cm ≥		100	160	8	12	100	160
2	fracture elongation %≥		150	200	200	200	150	200
3	Dimension Changing at heating %≤		1.5	1	3	2	1.5	1
4	Foldability at low temperature °C		-20	-25	-20	-25	-20	-25
5	Water tightness		No leakage		No leakage		No Leakage
6	Joint shear resistance (N/mm)≥		3		3		6
7	Thermal Ageing treatment	Appearance	no bubble		no bubble		no bubble
		Tensile strength changing rate %	±25	±20	±25	±20	±25	±20
		Breaking elongation changing rate%
8	Chemical corrosion resistance	foldability at low temperature °C	-15	-20	-15	-20	-15	-20
		Tensile strength changing rate %	±25	±20	±25	±20	±25	±20
		Breaking elongation changing rate%
9	Artificial climate accelerated aging	foldability at low temperature °C	-15	-20	-15	-20	-15	-25
		Tensile strength changing rate %	±25	±20	±25	±20	±25	±20
		Breaking elongation changing rate%

N1	PVC membrane without compound layer for exposed
N2	PVC membrane without compound layer for non exposed
L1	PVC membrane with compound layer for exposed
L2	PVC membrane with compound layer for non exposed
W1	PVC reinforced membrane for exposed
W2	PVC reinforced membrane for non exposed

Application

Roof construction and steel structure of both industrial and civil engineering

Underground engineering, such as subways, tunnels, air Raid shelter, etc.

Other projects like sewage treatment, dam, water reservoir, landfilling, grain storehouse, etc.
