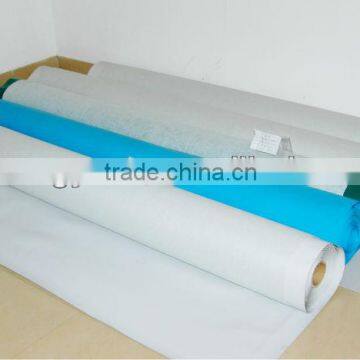

Polyvinyl Chloride(PVC) Waterproof Membrane/roof Membrane
- qing dao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | hongyuan | |
| Model Number | HY |
Product Description
Specifications
1. Polyvinyl Chloride(PVC) waterproof membrane/roof membrane2.thickness:1.2mm,1.5mm,2.0mm
3.width:2.05m
4.length:20m
Introduction
Hongyuan Polyvinyl Chloride (PVC) waterproofing membrane is a new polymer waterproof membrane which is made from polyvinyl chloride resin, and mixed with plasticizer, filler, antioxygen, ultraviolet absorber and other auxiliaries. Hongyuan adopts automatic mixing of raw material, double-screw extruder and delicate three-roller calender equipment in the PVC membrane production. Hongyuan PVC waterproof membrane features dimensional stability and high tensile strength, being a best choice for many civil and industrial project,
PVC Waterproof membrane | ||||||||
No. | Item | L | N | W | ||||
I | II | I | II | I | II | |||
1 | Tensile strength N/cm ≥ | 100 | 160 | 8 | 12 | 100 | 160 | |
2 | fracture elongation %≥ | 150 | 200 | 200 | 200 | 150 | 200 | |
3 | Dimension Changing at heating %≤ | 1.5 | 1 | 3 | 2 | 1.5 | 1 | |
4 | Foldability at low temperature °C | -20 | -25 | -20 | -25 | -20 | -25 | |
5 | Water tightness | No leakage | No leakage | No Leakage | ||||
6 | Joint shear resistance (N/mm)≥ | 3 | 3 | 6 | ||||
7 | Thermal Ageing treatment | Appearance | no bubble | no bubble | no bubble | |||
Tensile strength changing rate % | ±25 | ±20 | ±25 | ±20 | ±25 | ±20 | ||
Breaking elongation changing rate% | ||||||||
8 | Chemical corrosion resistance | foldability at low temperature °C | -15 | -20 | -15 | -20 | -15 | -20 |
Tensile strength changing rate % | ±25 | ±20 | ±25 | ±20 | ±25 | ±20 | ||
Breaking elongation changing rate% | ||||||||
9 | Artificial climate accelerated aging | foldability at low temperature °C | -15 | -20 | -15 | -20 | -15 | -25 |
Tensile strength changing rate % | ±25 | ±20 | ±25 | ±20 | ±25 | ±20 | ||
Breaking elongation changing rate% | ||||||||
N1 | PVC membrane without compound layer for exposed | |||||||
N2 | PVC membrane without compound layer for non exposed | |||||||
L1 | PVC membrane with compound layer for exposed | |||||||
L2 | PVC membrane with compound layer for non exposed | |||||||
W1 | PVC reinforced membrane for exposed | |||||||
W2 | PVC reinforced membrane for non exposed | |||||||
Application
Roof construction and steel structure of both industrial and civil engineering
Underground engineering, such as subways, tunnels, air Raid shelter, etc.
Other projects like sewage treatment, dam, water reservoir, landfilling, grain storehouse, etc.
