Home > Products > Power cable > 35mm 50mm 95mm 120mm 150mm 185mm 240mm XLPE SWA PVC power supply cable Armoured 4 Core Power Cable
35mm 50mm 95mm 120mm 150mm 185mm 240mm XLPE SWA PVC power supply cable Armoured 4 Core Power Cable
- Tianjin
- T/T Credit Card
You May Like
-
high quality 0.6/1kV price of electric power cable 16mm
-
copper core pvc insulated 4 core armoured power cable 120mm
-
Cable manufacturers 50mm2 four core XLPE insulated copper cable
-
hot selling copper conductor 70mm2 flexible electric power cable
-
hot selling PVC insulated 35mm power cable xipe power cable from power cable manufacturers
-
high quality PVC Insulated cover 10mm2 electric cable price
Product Details
| Place of Origin | Hebei, China | Brand Name | RONGHUA | |
| Model Number | Cu/XLPE/PVC/SWA/PVC | Insulation Material | Other, PVC/XLPE | |
| Type | Low Voltage | Application | Construction | |
| Conductor Material | Other, Class1/2 annealed bare copper | Jacket | Other, PVC /LSZH |
Product Description
35mm 50mm 95mm 120mm 150mm 185mm 240mm XLPE SWA PVC power supply cable Armoured 4 Core Power Cable
Brief Introduction for 4 core power Cable
lpe swa pvc power supply cable Armoured 4 core power Cable is applicable for power transmission through the power line of rated voltage 1kV and below, and it is proper to lay these cables in the fixed places, such as hotels, stations, chemical engineering and oil platforms, mines, power plants, metros, and high buildings, etc.
Construction for 4 core power Cable
Conductor: copper
Insulation:PVC
Armor: SWA,STA
Sheath:PVC
Character: flame retardant, fire resistance
Producr range of 4 core power Cable
Type | Cu/XLPE/SWA/PVC, Al/XLPE/SWA/PVC | |
Voltage | 0.6/1 kV | |
Cores | 1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E | |
Range of Nominal cross section | 1.5 mm2 - 630 mm2 | |
Application | Low voltage armoured power cable applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces, and certain force | |
Standard | IEC 60502, BS 7870, GB/T12706 | |
Description for 4 core power Cable
YJV22 | XLPE Insulated PVC Sheathed Steel Tape Armoured Power Cable | Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
YJLV22 | Al. Insulated PVC Sheathed Steel Tape Armoured Power Cable | |
YJV32 | Copper Conductor XLPE Insulated Fine PVC Sheathed Steel Wire Armoured Power Cable | Apply to shafts,water and soil,able to bear the larger positive pressure. |
YJLV32 | Al Conductor XLPE Insulated Fine PVC Sheathed Steel Wire Armoured Power Cable |

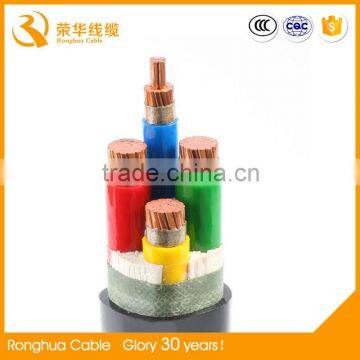

Picture of 4 Core Power Cable
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service.
Main Products: Power cable,Electrical wire cable,Below 35kV voltages of XLPE insulated cables; armoured cable , Control cables, Rubber cables, PVC insulated wires and cables, BV wire,House wire; Low Voltage Steel Wire Armoured 4 Core Cable ; etc.
Certifications:
Related Products:
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Welcome your inquiry. We will reply you within 12 hours!
Contact Person: Amy
Email: amy@
Skype: you580231
