Home > Products > Powered by Shangchai engine > 250kva generator set powered by China shangchai engine with low price and good service(hot sale)

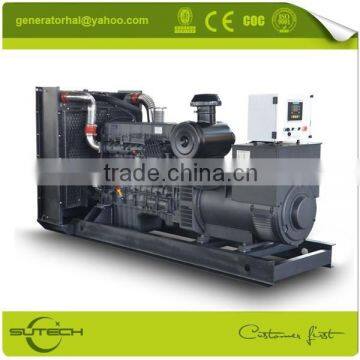

250kva generator set powered by China shangchai engine with low price and good service(hot sale)
- 100 Set / Sets per Month
- Shanghai
You May Like
-
300kw genset powered by China shangchai engine with low price and good service(hot sale)
-
China shangchai diesel genset with good price and perfect service
-
10Kva to 60Kva Yangdong diesel generator, High quality and low price, water cooled
-
Cheap price silent single phase 15kw Yangdong generator
-
Cheap price silent single phase 15kw generator with automatic transfer switch
-
10Kva to 60Kva portable diesel generator for sale
Product Details
Place of Origin | Jiangsu, China | Brand Name | Shangchai | |
Model Number | ST-V300GF | Output Type | AC Three Phase | |
Speed | 1500rpm | Frequency | 50hz | |
Rated Power | 200Kw/250kva | Rated Voltage | 220/380V | |
Rated Current | 360A |
Product Description
250kva generator set powered by China shangchai engine
China shangchai diesel genset powered by Shanghai diesel engine,the engine made in China Shanghai city which host the Expo 2010.
Shanghai diesel engine co.,ltd grew out of Shanghai diesel plant established in 1947 and was changed ad state-holding corpoation issuing A and B share in 1993 at home and abroad.
The company is provided with seven series of diesel and natural gas engine to be widely used for supporting the factlities of truck,passage car,engineeing machineries,power generator unit,ship and agricultural machinery to meet Europe IV,V emission standard.The products are distributed all over the world.
Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by China shangchai engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 25 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. |
Performance Index
Sutech power Co., Ltd is the most professional manufacturer in diesel generator industry. All our products are composed by the generators that well equipped with famous brand engines, brushless self-excitation AVR controller, and have a complete range of sizes to meet the different demands of clients. The diesel generator sets usually work with 400V / 230V three-phase four-wire system and 50HZ AC, the 60HZ AC or other voltage standard used in worldwide is also acceptable..
Standard Power
Rated voltage: 400/230V 3 phases and 4 wires
Rated frequency: 50HZ (60HZ)
Atmospheric pressure: 1000KP (ALT 1000m)
Ambient temperature: 5 ℃ -45 ℃
Relative Humidity: 60%
Reliable operating status: ALT is under 1,000 meters; AT is 45℃.
Engine Model | SC9D310D2 |
Engine manufacturer | Shangchai |
Number of Cylinders | 6 cylinders |
Cylinders arrangement | Vertical in line |
Cycle | 4 stroke |
Aspiration | Naturally |
Bore×Stroke | 128mm x153mm |
Displacement | 11.8L |
Compression ratio | 17:1 |
Prime Power/Speed | 208KW / 1500rpm |
Standby Power/Speed | 228KW / 1500rpm |
Speed Governor | electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 45L |
Fuel Consumption at 100% Load | 198 g/kw.h |
Starter Motor | DC24V |
Alternator | AC24V |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 300Kw |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
Packaging:plywood case
Shipping:From Shanghai
12 months or 1000 hours of warranty time for all our products. We take the full responsibility only in the fault that created by the quality,the wearing-parts, daily consumables and human error of operating and maintenance are not included in.
Before sales service
Free charge on load capacity analysis, complete-set forming, technology consultation as well as assisting user to fix up machinery room and lay out equipment installation plan.
Under sales service
For the purpose of helping user to master all type of generator operation, use and maintenance better, we specially offer the cost-free full set on-site training session in our company
After sales service
We attach great importance of after sale service,we establish the computer backup for follow up service and periodic inspection. Our Maintenance Center has the quick rection management system, we’ll indicate user eliminate fault in an hour via phone or arrange the service people doing on-site maintenance A.S.A.P for more complicated condition. About the complain,we always strictly follow the principle of seeking truth, and appoint the responsible person to solve trouble.
Sutech Power Co., Ltd
No.18 Hailing Industry Park, Taizhou City, Jiangsu Province, China
Mobile: +86-18262802979
skype:jsad0911
