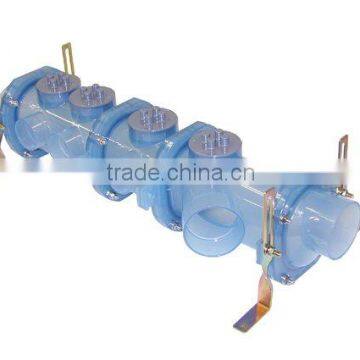

Viny-Header construction tool of easy check and meintenance

Specifications

Our company’s(Maruokosho)recommendation!!

Product name is ‘’Viny-Header’’ from Japan of Mezawa Kasei Industrues Co.,Ltd

”Viny-Header’’is New generation waste water system(domestic drainage systems).

House maintenance check is not easy.

But this system is very important part for hidden in the basement owing to live comfortable house and build new house.

Its is easy check and repair for drain.

Acceptable systems for construction supplier and costmers.

Please check YOU TUBE!!!

http://youtu.be/wFljMmzmDdo

(YOU TUBE)

Hydraulic experimental film of “Viny-Header”

Drainage equipment : bathtub, washing machine, toilet, washstand, basin, kitchen(all six instruments)

Flow at the same time, You can watch the difference between the existing system and “Viny-Header”.

Exp1 by existing system (0:00 ~): Drain pipes have clogged by overflow Sewage does not flow. 1:27

 Exp2 by Viny-Header system (2:30~):It flows efficiently without overflow. 3:10

 Exp3 maintenance status of “Viny-Header”(4:05 ~): maintenance is easy because they are aggregated.

The long-term quality housing must need!

Three Features of "Viny-Header"

 • Features

1. Less -drain get less plug up!

It is possible to protect drain of plug up.

Because drain performance is improvement!

2. Easy: maintenance is easy way!

Easy maintenance cleaning under the floor because exhaust port is concentrated.

3. Easy and cutback:

Easy construction work and cutback of component

Many drainpipe get collect on one occasion and discharge to outdoors. That purpose.

Basic penetration and outdoor of reducing the mass get fewer.

• Compatible materials
Reinforced concrete/autoclaved lightweight concrete/half precast concrete/siding/extruded cement panels/Spancrete/deck plates/brick/blocks/stone/wood
* Incompatible with: steel, plasterboard, plywood
* ALC pulling weight is half the standard at 10kg

• Materials  Crosslinked Polyethylene

• Coulor Blue/Grey

• Structure Layered structure -Prevention of countercurrent

               Flange structure-Viny-Header use narrow space because of flange structure.

• Diameter size

Inflow Diameter-75mm 100mm

Outflow Diameter-75mm 100mm

 • Support metal fittings

Torsion type/L type/Flat board type

support height is free.

(Just slide of support metal fitting)

We have many kind of drain nstruction tool and other.

Please check our WEB  http://www.maruo.ne.jp
