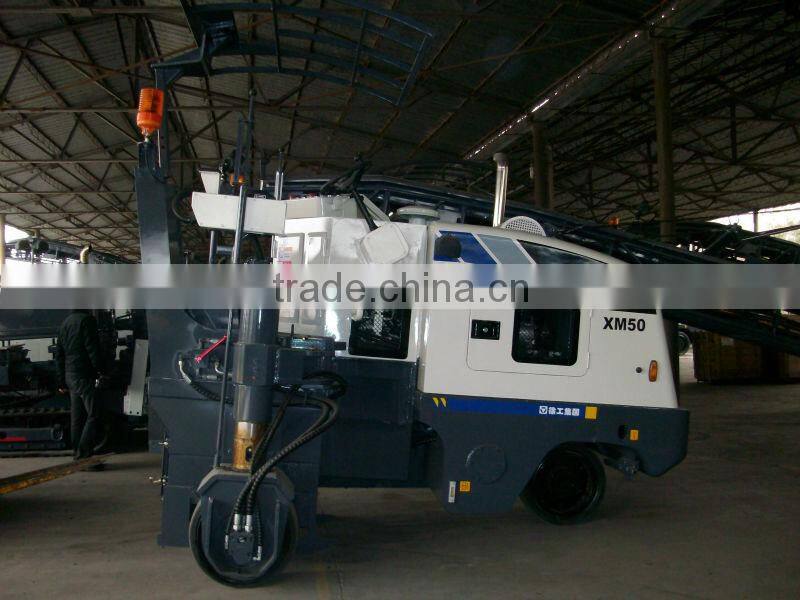

XM50 Cold Milling Machine
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | xcmg | Model Number | XM50 | |
| Type | Other | CNC or Not | Normal |
Product Description
Specifications
XM50 Cold milling machine1.Max. milling with 500 mm
2.Max. milling depth 120 mm
3.Engine Model 4BTA
4.Best quality
XM50 Cold milling machinery Capability feature
The integrated jointing frame features stronger anti-vibration and anti-distortion.
The hydraulic drive milling drum features stable operation and high reliability.
Three-wheel full drive travel system, the hydraulic differential ensures the machine to adapt to tough condition. With stepless shift-gears and high-low gear, the machine can meet the requirements of quick move and milling operation.
With small turning radius, the single front wheel steers, milling along the cellar cover.
Small dimension, flexibility and strong gradeability.
The milling depth is easy to adjust, stepless adjusting from several millimeters to 120 mm.
The imported high strength and abrasion resistance cutting units feature long service life and low construction cost.
The imported hydraulic components and reducer feature high reliability.
Excellent welt milling performance, the right rear leg can quickly swing into the frame, which can make the miller wheel to mill along the road side or the wall.
Hand held hydraulic crushing pickaxe is the optional device for the machine.
Model | XM50 | ||
Max. milling with | mm | 500 | |
Max. milling depth | mm | 120 | |
Milling wheel | Number of tools | 44 | |
Drum diameter with tools | mm | 660 | |
Engine | Model | 4BTA3.9-C110 | |
Rated power | kW | 82 | |
Rated speed | rpm | 2200 | |
Specifications | Operating speed | m/min | 0~30 |
Travel speed | km/h | 0~6 | |
Ground clearance | % | 60 | |
Ground clearance | mm | ≤120 | |
Operating weight | kg | 7000 | |
Volume | Fuel tank | L | 140 |
Hydraulic oil tank | L | 120 | |
Water tank | L | 300 | |
Conveyor | Width | mm | |
Measurement | Overall machinery LxWxH | mm | 3470×1895×3070 |
Conveyor LxWxH | mm | ||
Travel mode | Tire | ||
