RP602 asphalt concrete paver
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | xcmg | Model Number | RP602 |
Product Description
Specifications
RP602 Multi-Function Asphalt Concrete PaverEngine: Detuz(118kw)

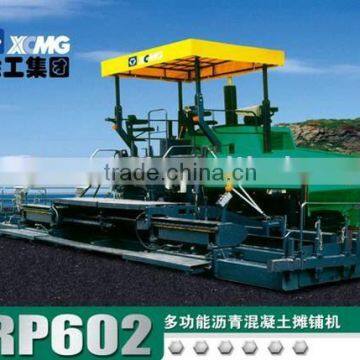

RP602 asphalt concrete paver
Driving system with control for right and left hand separately, computer-control, auto-control technology for paving keeps constant speed.
Material level controlled with ultrasonic sensor technology achieves the constant level automatically.
Electric auto-leveling technology ensures the perfect smoothness.
Extendable screed with specific technology of single tamper bar and electric heating are adopted to gain the high pre-compacted density.
Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high temperature.
Adopted with an advanced, mature and reliable Deutz bf4m1013c water-cooling diesel engine, with a strong power.
Distributing auger, made of high wearing distributing bottom plate and screed bottom plate and screed bottom plate made of high wearing-resistant alloy and material distributing bottom plate and screed bottom plate imported wearing-resistant material,it prolongs the service life.
Control panel shows directly and clearly all working functions,paving,traveling speed;and could be mounted either on right or left side.
Item | unit | parameter |
Basic working width | m | 2.5 |
Max, working width | m | 6 |
Max. paving thickness | mm | 380 |
Paving speed | M/min | 0∼14 |
Traveling speed | Km/h | 0∼3.0 |
Theoretical productivity | T/h | 400 |
Hopper capacity | T | 13 |
Gradient Ability | % | 20 |
Smoothness | Mm/3m | 3 |
Slope leveling tolerance | % | ±0.03º |
Arciform Range | % | 0-+3 |
Tamper Revolution | r/min | 0∼1500 |
Tamper Amplitude | mm | 4 |
Engine type |
| BF4M1013C(Deutz) |
Rated power | KW | 112 |
Rated revolution | rpm | 2300 |
Gross Weight | t | 15.8-21.5 |
Overall dimension | mm | 6230×2500×3855 |
