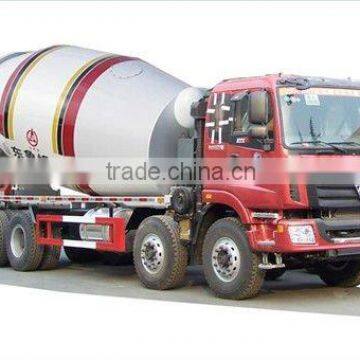

Lufeng 14cmb Concrete Mixer Truck

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Lufeng	Model Number	14cbm Concrete Mixer Truck
Weight	13980kg	Dimension(LWH)	1010024953890mm
Power(W)	280kw	After-sales Service Provided	Engineers available to service machinery overseas

Lufeng 12cmb Concrete Mixer Truck
1.Brand: Lufeng
2.Mixing Volume: 14cbm
3.Chassis Brand: SINOTRUK HOWO

Lufeng 12cmb Concrete Mixer Truck

Overall Dimension		Length	10100mm
		Width	2495 mm
		Height	3890 mm
Mixing Volume			14 m3
Front Overhang			1532 mm
Wheelbase			1800+3450+1350 mm
Rear Overhang			2600 mm
Dead Weight			13980 kg
Chassis	Chassis Brand		FOTON
	Driving Type		8x4
	Cabin		With air-condition, single sleeping berth.
	Tire		12.00-20, with one spare tire
	Engine		Brand: Weichai Power; Model: WP10.375; Power: 375HP; Displacement: 9.726L Engine Speed: 2200r/min; Emission Standard: Euro III
	Transmission		Brand: FAST Model: 9JS180, 9 forward gears and one reverse
	Clutch		Model: φ430; Type: Single-plate dry clutch, mechanically operating with air assisted
	Rear Axle		Each axle 13ton loading capacity, Ratio 5.73
Tank	Steel		Model: 16Mn, thickness 6mm
	Hydraulic Pump		TOP, Italy
	Motor		TOP, Italy
	Speed Reducer		TOP, Italy
