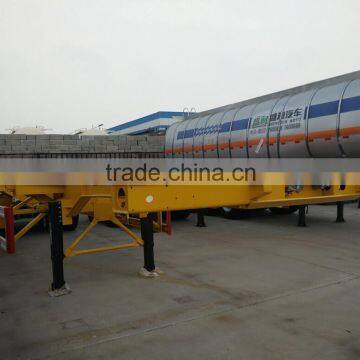

China Time Go 3 Axle 12 Twist Locks Skeleton Semi Trailer for Sale

Tare Weight

About 7.1T

Dimension

12450mm*2490mm*1575mm

Loading Capacity (T)

 45 T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5 or   9.75-22.5

Tire

12.00R22.5/ 315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

(especial for exporting market )

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

Down plate is 16mm; Material is Q345B Steel.

Side beam

16mm or 18mm channel steel (Material is Q235steel).

Bottom platform

3mm diamond steel plate

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)

(especial for exporting market )

Valve

WABCO valve (especial for exporting market )

Light

LED light (especial for exporting market )

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.
