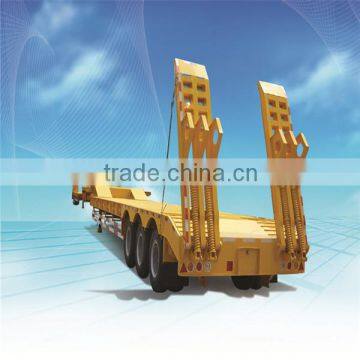

2014 China TIME GO HOT SALE 3axles Heavy Duty Low Bed Semi Trailer

Tare Weight

About 8.5-13T

Dimension

12000mm-18000mm*2500mm-3500mm*3050mm

Please indicate the working platform height and length.

Loading Capacity (T)

30T-100T

Axle

13 T/16T, FUWA /BPW Brand

Rim

6.5-20/7.5-20/8.00-20/8.5-20

Tire

8.25R20/10.00R20/11.00R20/12.00R20

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm,

down plate is 16mm-25mm ; Material is Q345B Steel .

Side beam

16mm -25mm channel steel ( Material is Q235steel ).

Ladder

Manual or Hydraulic type

Gooseneck

For choose

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container
