Home > Products > Tubular Motor > 35mm Tubular Motor With Tool-less Mechanical Limit Switch

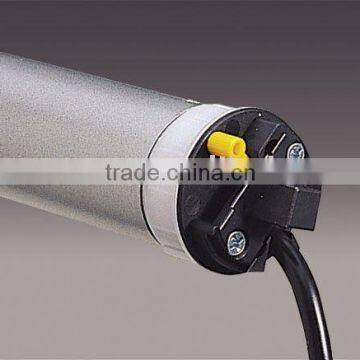

35mm Tubular Motor With Tool-less Mechanical Limit Switch

FOB Price

Negotiable / Unit

5 Units(Min. Order)

Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KNIG'S MOTOR / OEM BRAND		Model Number	40A Series
Place of Origin	Taiwan, China

Product Description

Specifications

OMA Mechanical Limit Switch Tubular Motor.No Tools Needed for Limit Switch adjustment, Limit Switch is adjust by yellow switch.

SN40-A SERIES Featuring:

1. The electronic limit switch utizlise Plastic Circuit Board with IC and Roms to memorise motors top stop positioand bottom stop positions.

2. The Top and bottom stop positions is needed for motorized roller blinds and venetian blinds.

3. The Top and bottom stop positions is programed with very simple opereation via remote.

4. If there are many motorized blinds installed, our motors can programed its Top and bottom stop positions simultaneously regardless of how many motors installed.

5. The Eletronic limit switch has 2 programs in built. Programme 1 is roller blind mode. Programme 2 in Venetian mode.

6. In roller blind mode the motors offers simple Top, middle and bottom

position stop points for user to use.

7. In venetian mode it has top, middle and bottom position plus tilting for the slat.

(Mechanical Type)

Item No.	Torque Nm	Speed rpm	Volt/Hz V Hz	Motor Dia D (mm)	Length L (mm)	Ampere A	Watt W
SN 405A34	5	34	120-60	35.7	608	1	125
SN 410A16	10	16
SN 405A34	5	30/34	220-50/60	35.7	608	0.5	115
SN 410A16	10	14/16
SN 405A30	5	30	230/240-50	35.7	608	0.6	130
SN 410A14	10	14

1. The electronic limit switch utizlise Plastic Circuit Board with IC and Roms to memorise motors top stop position and bottom stop positions.

2. The Top and bottom stop positions is needed for motorized roller blinds and venetian blinds.

3. The Top and bottom stop positions is programed with very simple opereation via remote.

4. If there are many motorized blinds installed, our motors can programed its Top and bottom stop positions simultaneously regardless of how many motors installed.

5. The Eletronic limit switch has 2 programs in built. Programme 1 is roller blind mode. Programme 2 in Venetian mode.

6. In roller blind mode the motors offers simple Top, middle and bottom

position stop points for user to use.

7. In venetian mode it has top, middle and bottom position plus tilting for the slat.
