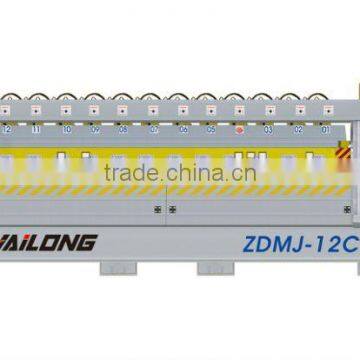

Zdmj 12c Automatic Multi-heads slab polishing machine

Specifications

ZDMJ 12C GRANITE AUTOMATIC POLISHING MACHINE FOR SLAT

MACHINE PRODUCTION ABILITY:

Average:1200~1800 M2/DAY

Hard: 1000~1600M2/DAY

Soft: 12000~1800M2/DAY

Suggested abrasive combination:(see attached pictures)

12 heads:#50 X1,#400X2, #200X2, #500X2,#800X1,#1500X1,#0X2

FEATURES:

I. The brand new six spring polishing head rather than the original polishing head. There are 6 spring bring 6 stress point, which make the polishing process more stable; and instead of one-term pressing, we enable the principal axis descend in 3 times, relieve the force of  when it descending, so that it can better avoid impact and protect the slab.

II. And the adopt of the special and unique infrared slab sensor can recognize the flatness and shape of the slab to better polishing later.

II. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5KW power, its power consumption is two quarters less than traditional continuous polisher.

IV. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen.

V. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with variable frequency adjustable speed system to adjust speed of lateral grinding and polishing of polishing head and speed of transmitting slab and to adjust them flexibly within set value.

TECHICAL PARAMETER

REMARKS:

Packing:  Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Lead time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: Half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch

Market share:

Fujian Hailong brand granite automatic polishing machine, with our unique advantage have already occupied the domestic and overseas market successfully.In China we have sold to every province, setting  office in each place. And we also extend our overseas market in like Iran, Turkey, Pakistan, India, Indonesia, Vitemn, Thailand.

Company production ability:We produce more than 30 sets of automatic polishing machine e ach month.

Service:

Fujian hailong Co., ltd will offer you the best and professional technology and after sales service.And our company build up a professional group to track all the sold machine for its regular working and maintaining. Besides, we will have half and year guarantee.

Other related photos :
