Home > Products > New Products > Single-arm Hydraulic Cylindrical Guide Multi Blades Brige Saw CNC Cutting Machine 18 Blades

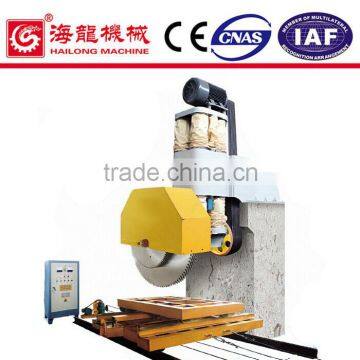

Single-arm Hydraulic Cylindrical Guide Multi Blades Brige Saw CNC Cutting Machine 18 Blades
- 6 Set / Sets per Month
- XIAMEN
- T/T
You May Like
Product Details
| Type | Stone Cutting Machine | Use | Granite | |
| Production Capacity | 300m2/day | Place of Origin | Fujian, China | |
| Brand Name | HAILONG | Model Number | HLDBDQ-18 | |
| Voltage | According to customer demand | Power(W) | 90kw | |
| Dimension(L*W*H) | 10000*7000*6600mm | Weight | 9T | |
| Certification | CE/ISO/CNAS | Warranty | 6 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. 18 multi blades granite block bridge saw CNC cutting machine(5.5~6.5mm thickness)2.300m2/ day production
Single-arm Hydraulic Cylindrical Guide Multi Blades Brige Saw CNC Cutting Machine 18 Blades
FUCTION:
This machine is improved from the traditional combination blades block cutting, and it also adopt the 4 columns structure. The performance is excellent with very small cutting gap.By obviously reducing the shaking during the cutting, the after cutting slab looks very smooth and high cutting accuracy. Beside, also we improve the segment life and reduce the power consumption.
Item NO. | HLDBDQ-10/12 | HLDBDQ-14 | HLDBDQ-16 |
Saw Diameter | 1650mm/2200mm(Raise foundation height) | ||
Saw Amt | 10/12 | 14 | 16 |
Max Vertical Stroke | 1000/1300mm(Raise height) | ||
Max cutting size | 3500*1550*1000mm | 3500*1600*1000mm | 3500*1650*1000mm |
Manit motor power(kw) | 45/55 | 65 | 75 |
Water Consumption | 26m³/h | 30m³/h | 34m³/h |
Weight(kg) | 8500 | 8700 | 9000 |
Item NO. | HLDBDQ-18 | HLDBDQ-20 | HLDBDQ-22 |
Saw Diameter | 1650mm/2200mm(Raise foundation height) | ||
Saw Amt | 18 | 20 | 22 |
Max Vertical Stroke | 1000/1300mm(Raise height) | ||
Max cutting size | 3500*1550*1000mm | 3500*1600*1000mm | 3500*1650*1000mm |
Manit motor power(kw) | 85 | 95 | 110 |
Water Consumption | 40m³/h | 45m³/h | 50m³/h |
Weight(kg) | 9000 | 10000 | 11500 |
MACHINE RUNNING PHOTOE
