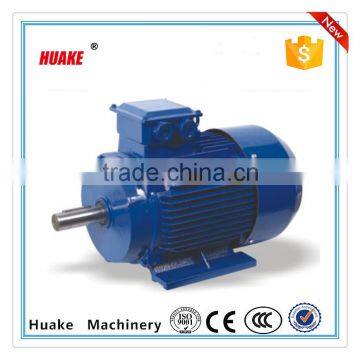

High quality YE2 series three phase asynchronous electromotor
- Qingdao port
- L/C D/P D/A
You May Like
-
VTV precision gear motor YN100-70 Series speed reducer
-
VTV precision gear reducer YN Series gear motor Quality Choice
-
Chinese high quality 0.75kw 1.5kw motor three phase asynchronous motor Quality Choice Most Popular
-
Chinese high quality 1.5kw motor asynchronous electric motor Quality Choice Most Popular
-
NMRV Aluminum alloy worm gear reducer
-
Superior quality RV worm gear reducer 25-70 Most Popular
Product Details
Brand Name | HUAKE | Model Number | YE2 | |
Type | Asynchronous Motor | Frequency | 50/60Hz | |
Output Power | 0.18KW-560KW | Protect Feature | Totally Enclosed | |
Phase | Three-phase | Certification | CCC, CE, ROHS, UL, VDE | |
AC Voltage | Other, 380V/220V | Place of Origin | Shandong, China | |
Efficiency | IE 3 |
Product Description
For the Connection Model of Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal or below 3kW; The Delta-Connection is adopted by motors' Output above 4kW).
Y2 Motor can be equipped with PTC.
--For motor of frame size 160MM and above can be equipped with re-greasing system.
SPECIFICATIONS:
1.capacity:0.12-315kw
2.pole;2-10,Good design
3.Cooling method: IC411
4.match:pump,blower,fan
TECHNOLOGY DATA:
220v 380v 3 phase electric motor
Type | Output kw | Sync. Speed r/min | Current A | Efficiency% | Power factor cosφ | torque/Rated torque | Locket current/Rated torque | Pull out torque/Rated torque | movement | Noise | ||
230v | 380v | 690v | ||||||||||
YE2-801-2 | 0.75 | 2885 | 3.0 | 1.7 |
| 77.4 | 0.83 | 2.3 | 6.8 | 2.3 | 0.001 | 62 |
YE2-802-2 | 1.1 | 2885 | 4.2 | 2.4 |
| 79.6 | 0.83 | 2.3 | 7.3 | 2.3 | 0.0013 | 62 |
YE2-90S-2 | 1.5 | 2885 | 5.5 | 3.2 |
| 81.3 | 0.84 | 2.3 | 7.6 | 2.3 | 0.002 | 67 |
YE2-90L-2 | 2.2 | 2890 | 7.8 | 4.5 |
| 83.2 | 0.85 | 2.3 | 7.8 | 2.3 | 0.0026 | 67 |
YB2-100L-2 | 3 | 2895 | 10.2 | 5.9 |
| 84.6 | 0.87 | 2.3 | 8.1 | 2.3 | 0.0042 | 74 |
YE2-112M-2 | 4 | 2895 |
| 7.6 | 4.4 | 85.8 | 0.88 | 2.3 | 8.3 | 2.3 | 0.0058 | 77 |
YE2-132S1-2 | 5.5 | 2920 |
| 10.4 | 6 | 87 | 0.88 | 2.2 | 8 | 2.3 | 0.0128 | 79 |
YE2-132S2-2 | 7.5 | 2915 |
| 13.8 | 8 | 88.1 | 0.89 | 2.2 | 7.8 | 2.3 | 0.0151 | 79 |
YE2-160M1-2 | 11 | 2945 |
| 20 | 11.5 | 89.4 | 0.89 | 2.2 | 7.9 | 2.3 | 0.0489 | 81 |
YE2-160M2-2 | 15 | 2945 |
| 26.9 | 15.5 | 90.3 | 0.89 | 2.2 | 8 | 2.3 | 0.0559 | 81 |
YE2-160L-2 | 18.5 | 2940 |
| 33 | 19.1 | 90.9 | 0.89 | 2.2 | 8.1 | 2.3 | 0.0648 | 81 |
YE2-180M-2 | 22 | 2960 |
| 39.1 | 22.6 | 91.3 | 0.89 | 2.2 | 8.2 | 2.3 | 0.0808 | 83 |
YE2-200L1-2 | 30 | 2965 |
| 52.9 | 30.5 | 92 | 0.89 | 2.2 | 7.5 | 2.3 | 0.163 | 84 |
YE2-200L2-2 | 37 | 2965 |
| 64.9 | 37.5 | 92.5 | 0.89 | 2.2 | 7.5 | 2.3 | 0.172 | 84 |
YE2-225M-2 | 45 | 2965 |
| 78.6 | 45.4 | 92.9 | 0.89 | 2.2 | 7.6 | 2.3 | 0.302 | 86 |
YE2-250M-2 | 55 | 2965 |
| 95.7 | 55.3 | 93.2 | 0.89 | 2.2 | 7.6 | 2.3 | 0.42 | 89 |
YE2-280S-2 | 75 | 2980 |
| 129.7 | 74.9 | 93.8 | 0.89 | 2 | 6.9 | 2.3 | 0.986 | 91 |
YE2-280M-2 | 90 | 2970 |
| 155.1 | 89.5 | 94.1 | 0.89 | 2 | 7 | 2.3 | 1.04 | 91 |
YE2-315S-2 | 110 | 2980 |
| 187.1 | 108 | 94.3 | 0.9 | 2 | 7.1 | 2.2 | 1.33 | 92 |
YE2-315M-2 | 132 | 2980 |
| 223.8 | 129.2 | 94.6 | 0.9 | 2 | 7.1 | 2.2 | 1.5 | 92 |
YE2-315L1-2 | 160 | 2980 |
| 267.7 | 154.6 | 94.8 | 0.91 | 2 | 7.1 | 2.2 | 1.67 | 92 |
YE2-315L2-2 | 200 | 2980 |
| 333.9 | 192.8 | 95 | 0.91 | 2 | 7.1 | 2.2 | 1.88 | 92 |
YE2-355M-2 | 250 | 2985 |
| 417.4 | 241 | 95 | 0.91 | 2 | 7.1 | 2.2 | 4.02 | 100 |
YE2-355L-2 | 315 | 2985 |
| 525.9 | 303.6 | 95 | 0.91 | 2 | 7.1 | 2.2 | 4.86 | 100 |
MORE SIMILAR PICTURE:
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by . It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
Q4: If we don’t find what we want on your website, what should we do?
A: We offer three options:
1, You can email us the pictures, drawings or descriptions details. We will try to design your products on the basis of our standard models
2, Our R&D department is professional for OEM/ODM products by drawing/samples, you can send us samples, we do customized design for your bulk purchasing.
3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, shoes machines and so on.
Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing
Q6: How about your product delivery time?
A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical bevel gearbox,40-60 days for planetary gearbox.
