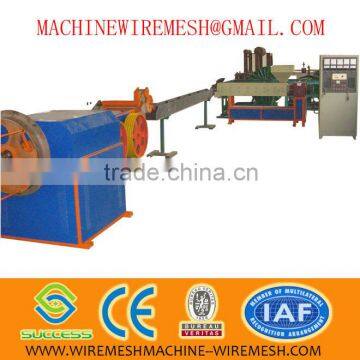

PVC COATING LINE MACHINE
- TIANJIN PORT CHINA
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Coating Production Line | |
| Substrate | Iron | Coating | Powder Coating | |
| Place of Origin | Hebei, China | Brand Name | JGTSJ | |
| Model Number | JG-60 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
PVC COATING LINE MACHINEA:Wire Diameter:0.8-9mm
B:Overview size:15*2.0*1.8M
C;Main Power:11KW
D:Max. 70KG/H Coated
PVC COATING LINE MACHINE
This product is adopted for producing electrical insulating
plaster with PVC.
The materials to be used is : 1). PVC.film 2). Solvent glue.
The main process is:Gravure coating & Comma Roll coating System.
Main component
1 Unwinder 1 set
2 Gravure coating header 1 set Oven 4M
3 Comma coating header 1 set
4 Oven 12segment 24M
5 Pedrail 3 set
6 Cooling trunk 4M
7 Storage framework 1 set
8 Rewinder 1 set
9 Transferring heat system 1 set
10 Controlling system 1 set
11 Ventilation system 1 set
12 Machine Frame 1 se
Specification ( mechanical figure )
1 Coating width 1300mm
2 Total power around 95 K
3 Rolling order +/- 2.5mm
4 Coating distribution +/- 0.003
5 Machine Speed 5-30M/min Line Speed 0-22m/min
6 Drying Method Heated by steam
7 Temperature controlling Max. 120 C+/-5C
8 Thickness of the glue Min. 0.02 ( dried glue )
9 Purchaser would prepare:
Heating source Heating pot
Compressed air 7kgf/cm2 7.5 Hp compressor
