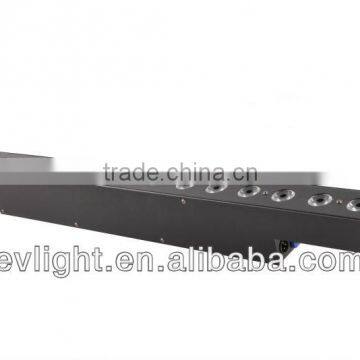

Indoor wall bar light 18x10w RGBW four in one led with each pixel control

Specifications

Products Name :EV WQ1018-S(18pcs four in one RGBW 10W LED)

Certification: CE,Rohs,EMC

*Each pixel control

Input Voltage : AC100V~AC240V, 50/60Hz;

Power Consumption : 180W;

Lamp Specifications :18 pcs four in one(RGBW) high-efficiency 10W LED, rated life 50000 hours;Lens Angle:25º(optional:45 °);

Spot Angle:40º;

Color:RGBW linear color mixing;

Color Temperature: color cast calibration setting , color temperature output inside device;

Dimmer: 0-100% linearly dimming ,

5 dimmer modes:32-bits dimming, still keep smooth dimming when changing at the range of low DMX value;

Refresh Frequency:1800Hz, no blink when camera shooting;

Shutter: independent electronic strobe ;

Control Mode:

Standard DMX512,3 pin interfaces ;

5 Channel modes;

Master/slave mode,no need to set up the master and slave manually, will receive the main engine data automatically ;

33 auto-running modes,rainbow channel, rainbow effect and flow water effect;

Other Functions:

Self-programming function, 3 chases,each chase has 25 scenes,fade function;

Projector setting data,self-programming data can be downloaded each other ;

Temperature Control Protection : lamp body temperature control protection ;

Waterproof Grade : IP20

Work Environment Temperature : -20°C~40°C;

Net Weight:5.0kgs

Dimension:

Factory and office pictures:

office:

Showroom:

2013 Shanghai  fair:

2013 Beijing fair:
