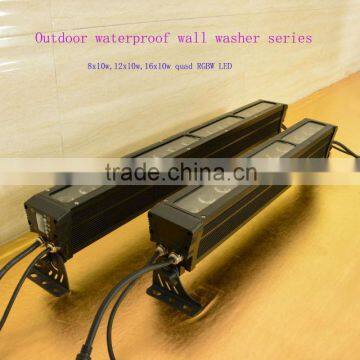

led stage flood light IP65 ourdoor wall light 16x10w bar light

Specifications

Certification: CE,Rohs,EMC

Model No.: EV W1016 wall wash light

The 16 pcs 10W LED with high-efficiency can be worked normally inside the small volume , light weight lamp body due to the excellent radiating design of EV W1016. This projector can provide rich color selection to entertainment designer due to the RGBW four in one LED ,four sections control separately function and multifunction design of it. EV W1016 with small body ,strong energy advantages is suit for theater ,show illuminating ,building laying light and so on. It appears satisfying rendering and background effect.

• Input Voltage: AC100V~AC240V, 50/60HZ;
• Power Consumption: 160W;
• Lamp Specifications:16 pcs four in one(RGBW)high-efficiency 10W LED, rated life 50000 hours;
• Lens Angle:25º(Optional 12°,30 °);
• Spot Angle:40º;
• Color:RGBW linear color mixing;
• Color Temperature: color cast calibration setting , color temperature output inside device;
• Dimmer: 0-100% linearly dimming ,
• 5 dimmer modes:32-bits dimming, still keep smooth dimming when changing at the range of low DMX value ;
• Refresh Frequency:1800Hz, no blink when camera shooting;
• Shutter: independent electronic strobe ;
• Control Mode:
• Standard DMX512,3 pin interfaces ;
• 5 Channel modes;
• Master/slave mode,no need to set up the master and slave manually, will receive the main engine data automatically ;
• 33 auto-running modes,rainbow channel, rainbow effect and flow water effect;
• Other Functions:
• Self-programming function, 3 chases,each chase has 25 scenes,fade function;
• Projector setting data,self-programming data can be downloaded each other ;
• Temperature Control Protection : lamp temperature control protection ;
• Waterproof Grade : IP65
• Work Environment Temperature : -20°C~40°C;
• Net Weight:6.8 kgs

Products effect:

Showroom:

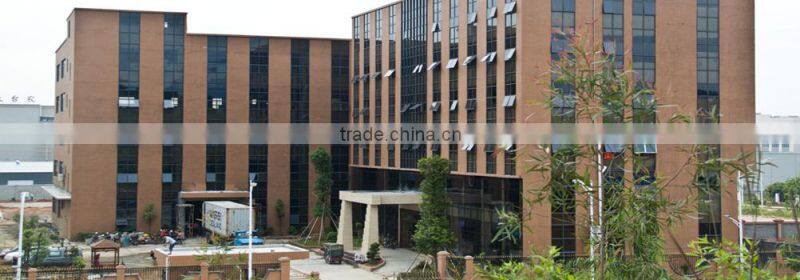

Factory & office pictures;

Prolight fairs:

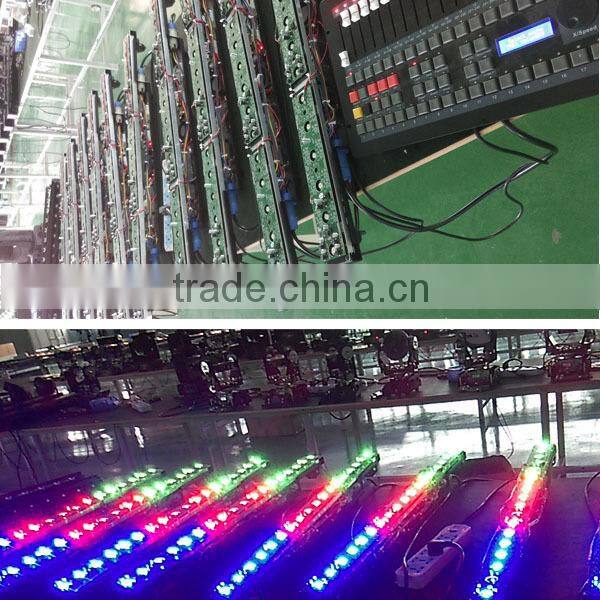

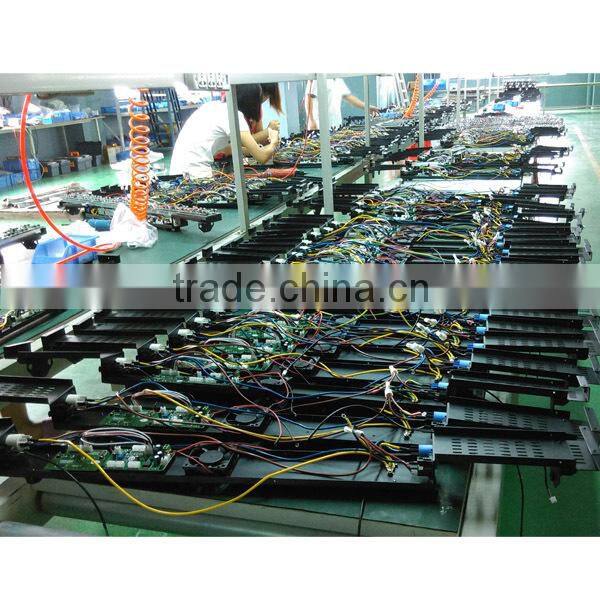

Workshop:

Please add skype account: eyspeaker & wechat account; sunlifen2007
