TFT1550D 1550nm External Modulation Optical Transmitter

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Lootom
Model Number	TFT1550D

External modulation
1U, 19 inch housing
Original world famous company JDSU laser
Dual power supplies
Reserve remote monitor

Features

Both the external modulator and laser are imported from the United States or Japan.
Perfect pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard.
Perfect SBS suppress circuit and adjustable SBS in 13,16, 18,suitable for different types of CATV net
AGC control.
Internal double power which can be changed automatically.
Automatically shell temperature control.
Internal microprocessor software has the function of laser monitoring, parameter display, fault warning, net management and so on. Once the working parameter of the laser goes out of the fixed value of the software, the machine will warn.
The transmitter provides RJ45 and RS232 standard interface for the connecting the computer and monitoring.

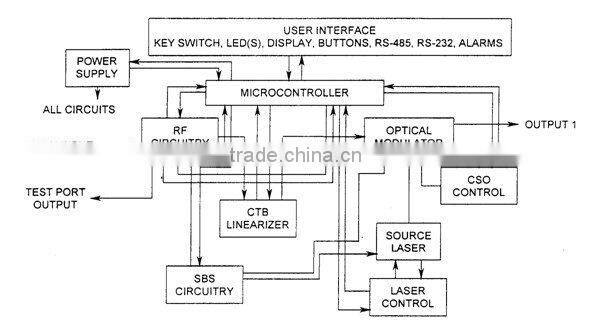

Diagram

Specifications

Parameter		Index	Remarks
Optical Parameters	Wavelength (nm)	1550±10
	Output power (dBm)	2×7	Or 1×5,1×6,1×7, 1×9,2×5,2×6,2×7
	Optical return loss (dB)	≥60
	Connector type	FC/APC	Or SC/APC
RF parameters	bandwidth (MHz)	45~862
	Input level(dBmV)	23±5	AGC
	Flatness (dB)	≤±0.75	45~862MHz
	Return loss(dB)	>16	45~750MHz
	Input inpedance (Ω)	75
Link Parameters	channels	PAL-D/60ch
	CNR (dB)	≥52	65Km fiber,Receive0dBm
	CTB (dB)	≤-65
	CSO (dB)	≤-65
	SBS (dBm)	≥16.0	13,16,18
General Parameters	Net interface	RJ45,R232
	Power(V)	90~265	Or -48VDC
	Power loss(W)	≤50
	Working Temperature	0~50	Automatically shell temp control
	Storage Temperature	-20~85
	Working relative Temp	20%~85%
