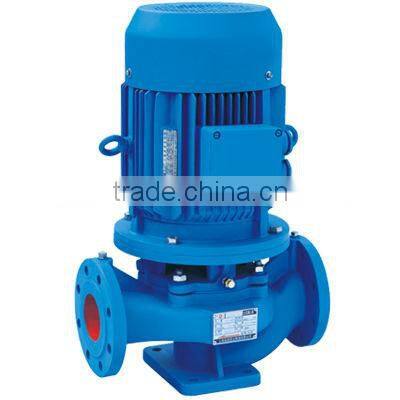

Single-stage Single-suction Upright Centrifugal Pump

Single-stage Single-suction Upright Centrifugal Pump

1. APPLICATION

1) Circulatim water for air conditioner
2) Water treatment
3) Cooling and refrigerating system
4) Liquid circulation water supply
4) Pressurization and irrigation

2. FEATURES

 1).Concentrical suction inlet/outlet, direct assembling on pipe is allowable, cost saving;

2). Coaxial and concentrical pump equiped with electric motor adopting low noise shaft bearing and continous lubricating device. Impeller suffers from strict dynamic-static balance. Complete machine runs smoothly with lower vibration and lower noise;

3). Shaft seal adopts mechanical seal. Noleakage design ensures longer service life and little maintenance cost;

4). Easy maintenance. It is possible to perform maintenance after disassembled motor and driving groupware without disassembling pipe;

5). The protection class motor  is IP55, and the whole sealing structure can prevent motor from damage caused in acceptance of dust, rain, or water drop etc.

6). Insulation of the equipped motor is class F and temperature rise is examined as class B, it improves maximal allowable temperature rise of motor.

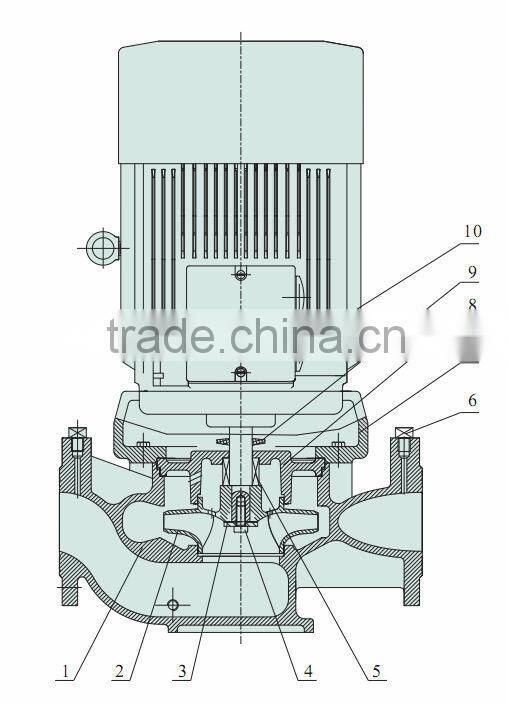

3.STRUCTURE DRAWING

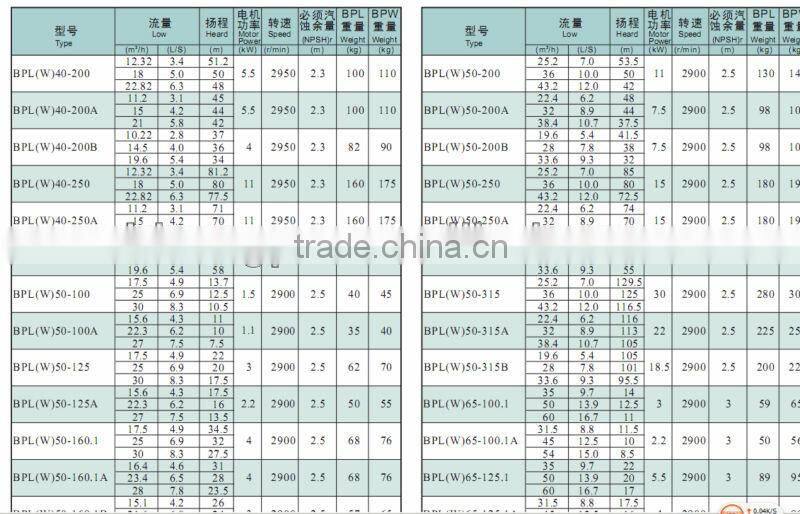

5.PERFORMANCE DATA

5.CE CERTIFICATE

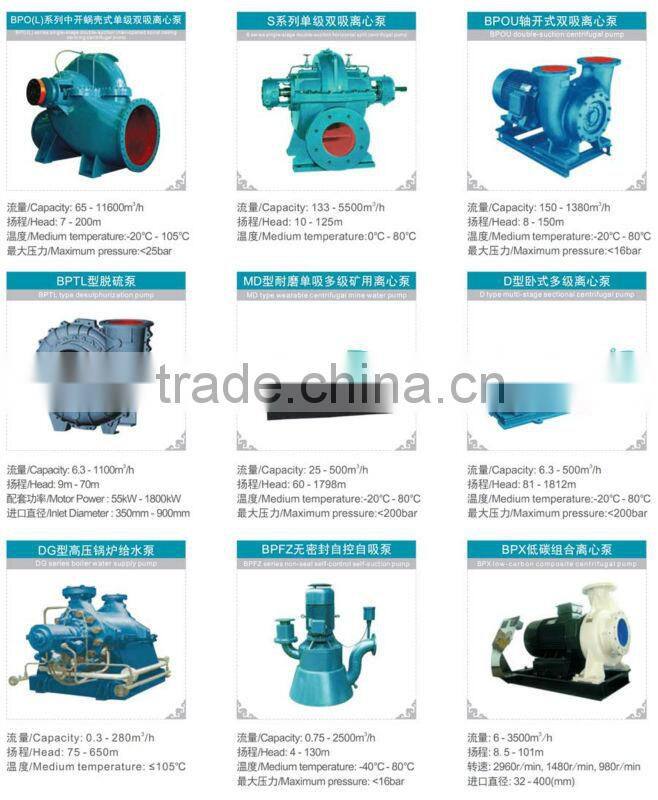

Other Pumps:
