Electrical Single-suction Chemical Pump 1.6Mpa
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | BANGPU | |
| Model Number | IH | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other | Pressure | Low Pressure | |
| Application | Other, Pharmacy,Chemical Industry, Petroleum, etc. |
Product Description

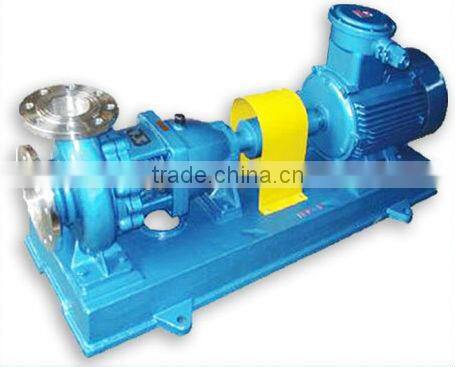

Electrical Single-suction Chemical Pump
1. Application:
For chemical industry, petroleum, metallurgy, electric power, paper making, food, pharmacy and synthetic fiber etc.
2. Features:
1). IH model chemical pump is single-stage end-suction(axia l suction) cantilever type centrifu gal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles;
2).The marked and rated performances and dimensions adopt ISO2858 international standard;
3). It has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and convenient maintenance etc;
4). It is energy saving type product recommended by the nation with its efficiency being 5% greater than that of F model pump;
5)The temperature of transported media of IH model chemical pump is -20 ---105 degree . Through adopting cooling method, it can transport media with higher temperature if necessary, and is applied to transport various corrosive media or media in which pollution is forbidden.
3. Range of Performance:
IH model pumps are classified as 29 basic types, among which, 22 two-speed (2900, 1450r/min) types being transformed after cut by the impeller diameter of A and B models, the total specification can be 12.
Item | Data |
Capacity | 6.3---400m3/h |
Head | 5---125m |
Speed | 2900r/min & 1450r/min |
Power of Fitted Motor | 0.55---90kw |
Inlet Diameter | 50---200mm |
The Highest Work Pressure | 1.6 MPa |

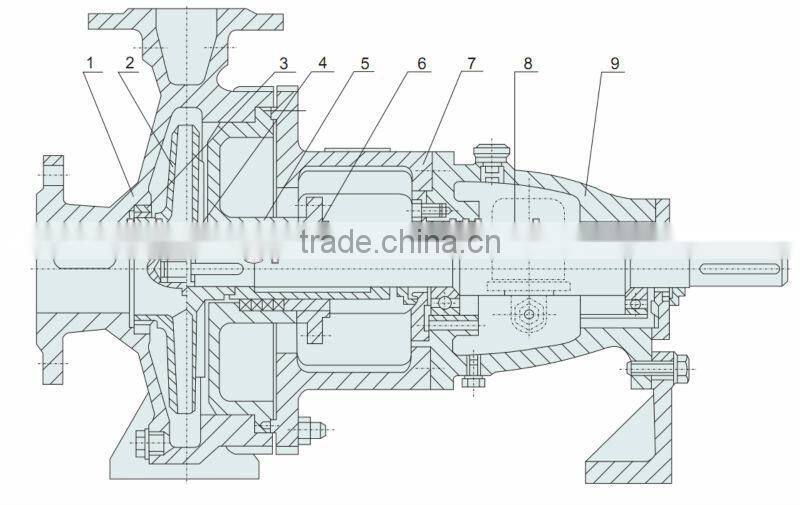

STRUCTURE DRAWING

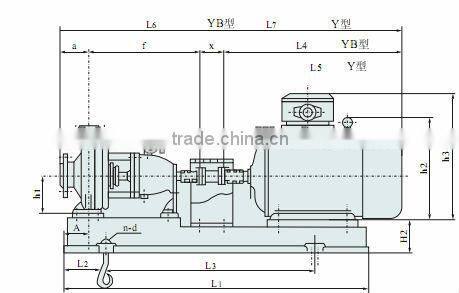

ATLAS OF STYLE

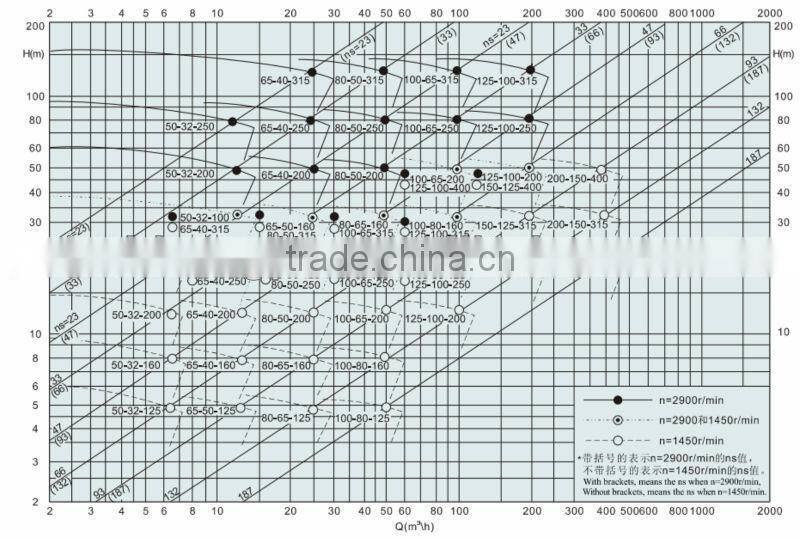

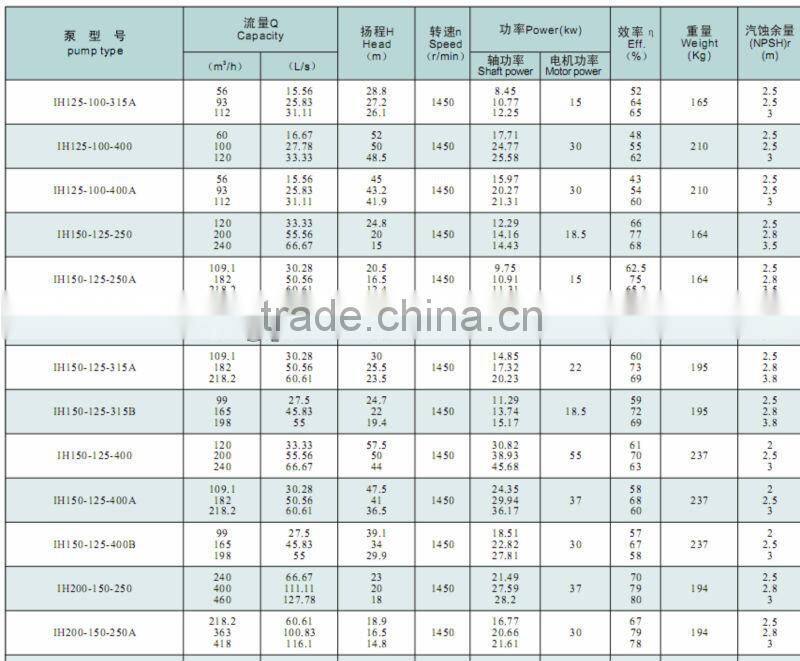

PUMP PERFORMANCE
CE CERTIFICATE
Other Pumps:

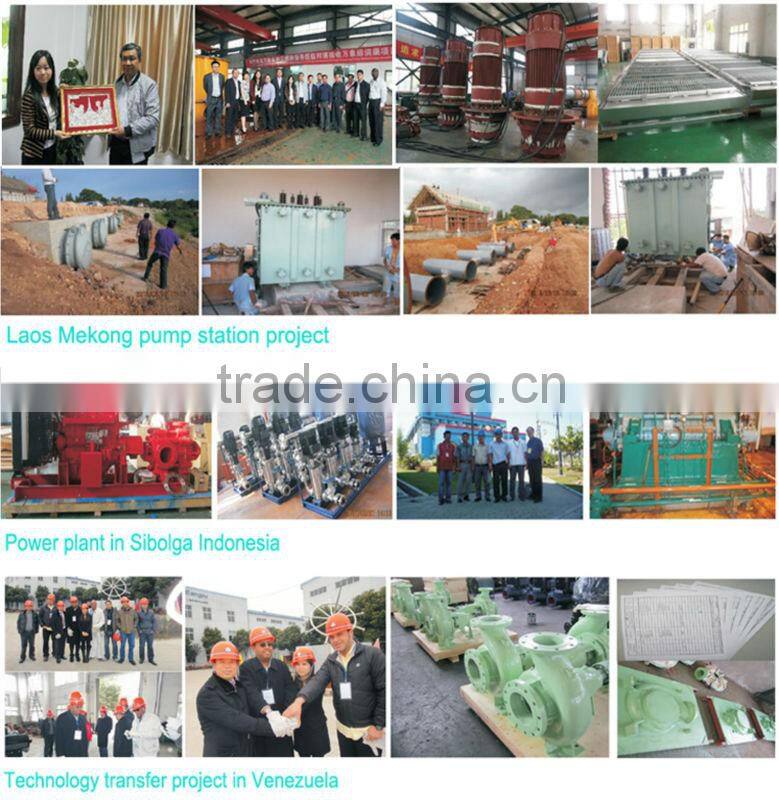

Project Case
