3.4-3.5 Ton Forklift Paper Roll Clamp Forklift Arm
- 1000 Piece / Pieces per Month
- Xiamen
- T/T
You May Like
Product Details
| Brand Name | WONTONNE | Model Number | Hydraulic-3.4-3.5T Paper Roll Clamp |
Product Description
3.4-3.5 Ton Forklift Paper Roll Clamp Forklift Arm
1.Applications:
Hydraulic Forklift Paper Roll Clamp just like forklift arm, designed for mills,converters, corrugators, stevedoring, printers,warehousing and all applications requiring a rugged, heavy-duty paper roll clamp.
Rated and field-proven for demanding operations handling kraft,linerboard and coated paper stocks.
2. Functions
Reduced Roll Damage
Fast Roll Handling
Proven Durability
3.Features
*WONTONNE brandis first class in China, which technology close to CASCADE.
*Key parts and accessories are world class
*Strict production flow

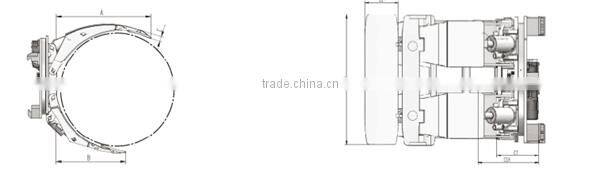

4. Specifications
| Capacity | Roll | Catalog | Type | Mounting | Mounting | Long | Short | Long | Weight | Effective | Horizontal |
| Range | Order No. | Class | Angle | Arm | Arm | Arm | Thickness | Center of | |||
| Length | Length | Thickness | Gravity | ||||||||
| (kg) | (mm) | A(mm) | C(mm) | B(mm) | (kg) | ET(mm) | CGH(mm) | ||||
| 3500 | 250-1520 | RCP35F-001B | B | III | 0° | 1000 | 670 | 65 | 1190 | 218 | 320 |
| 3500 | 250-1520 | RCP35F-001C | B | IV | 0° | 1000 | 670 | 65 | 1199 | 218 | 320 |
| 3500 | 610-1520 | RCF35F-002B | B | III | 0° | 1000 | 670 | 65 | 1180 | 218 | 320 |
| 3500 | 610-1520 | RCF35F-002C | B | IV | 0° | 1000 | 670 | 65 | 1190 | 218 | 320 |
| 3400 | 360-1830 | RCP45F-003C | B | IV | 0° | 1105 | 815 | 85 | 1385 | 198 | 338 |
| 3400 | 660-1830 | RCF45F-004C | A | IV | 0° | 1105 | 815 | 85 | 1376 | 198 | 338 |

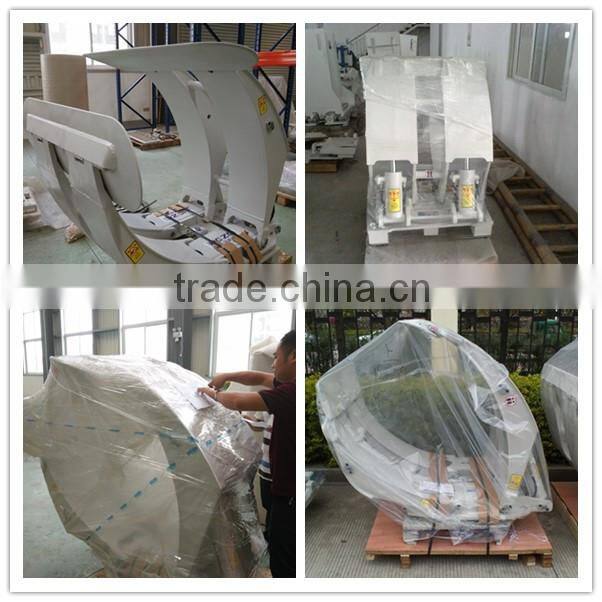

5. Good packages for forklift arm
6. Optional and parts
Custom open ranges
Positioned arm or fixed short arm
Split long arm
Special pads
