Forklift Attachment Hydraulic Block Clamp
- Xiamen
- T/T Credit Card
You May Like
Product Details
| Brand Name | WONTONNE | Model Number | CKS30D-001B |
Product Description
Forklift Attachment Hydraulic Block Clamp
1.Application

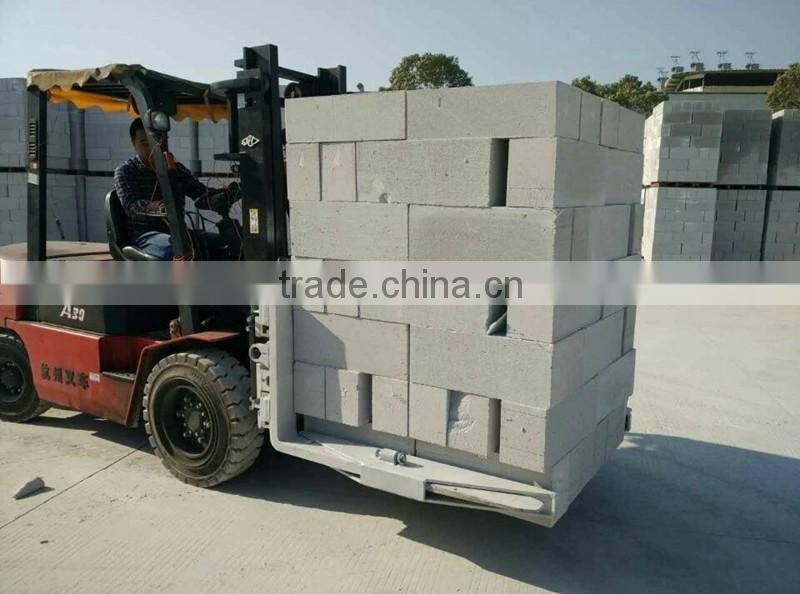

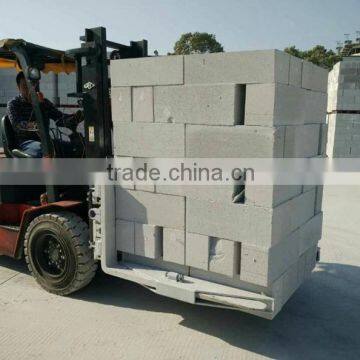

Block clamp can efficiently and saftly clamp various stone and block units. It is applied in fields like brickm, hollow block prefab contrete, and stone slab, etc. Non pallet conveying and stacking process.
2.Features
Adopt full steel complete frame, high density, can meet the requirement of high forcing performance.
Self-lubricate sliding brace, installation firm and stable, longer life-span.
Unique hydraulic design, ensuring moving right and left smoothly while clamping status, easy to lay out.
Optimized structure ensure nice visual field.
Adopting T sliding sheft with high force and bear equally.
3.Specification
| Name | Capacity/ Load Center (kg@mm) | Type | Mounting Class | Opening Range E (mm) | Arm Height H (mm) | Arm Length L (mm) | Frame Width B (mm) | Overall Height(mm) | Weight(kg) | Effective Thickness (mm) | Horizontal Center of Gravity (mm) |
| Forklift Block Clamps | 2700/500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 710 | 500 | 145 | 220 |
| 2700/500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 710 | 550 | 145 | 220 | |
| 2700/500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 710 | 490 | 145 | 211 | |
| 2700/500 | CKS30D-004A | III | 290-1610 | 128 | 1100 | 1016 | 710 | 500 | 152 | 220 | |
| 2700/500 | CKS30D-005A | III | 290-1610 | 242 | 1100 | 1016 | 710 | 550 | 152 | 220 | |
| 2700/500 | CKS30D-006A | III | 290-1610 | 128 | 1000 | 1016 | 710 | 490 | 152 | 220 | |
| 2700/500 | CKS30D-007A | III | 290-1610 | 242 | 1400 | 1016 | 710 | 650 | 152 | 250 |
Delivery of Forklift Attachment Hydraulic Block Clamp
