Hot!!! Anti-Tracking heat shrink tubing
USD $0.7 - $9.99
/ Meter
200 Meters(Min.Order)
- 1100 Ton / Tons per Month
- Dalian China
- T/T
You May Like
-
S3(h) UL486D Heavy wall flame retardant heat shrink tubing
-
S3(nh) polyolefin heavy wall halogen free heat shrink tubing
-
S1-B Polyolefin Bus Bar Insulation Boot/Shroud
-
Easy repair wrap-around heat shrinkable sheet
-
C102 Polyolefin Stress Control Heat Shrinkable sleeve for cable accessories
-
R1 polyolefin heat shrinkable repair sleeve
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | C101 | Type | Heat Shrinkable | |
| Material | Other, Polyolefin, Polyofefin |
Product Description

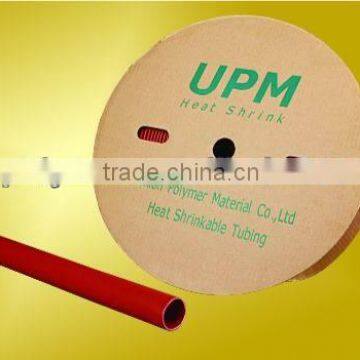

Hot!!! Anti-Tracking heat shrinkable tubing
Ideal for external insulation and protection of power cable termination
Non-tracking heat shrinkable tubing made of radiation cross-linked polyolefin and silicone rubber for power cable termination insulation
1. Voltage class 5-35kV
2. Suitable for outdoor applications
3. Optional: with or without adhesive
4. Halogen free environmentally friendly
Operating temperature: -55°C to 105°C
Shrink temperature: 105°C to 125°C
Cross references:
Raychem/Tyco: HVOT
DSG Canusa: CNIT
Sumitomo: SCT100
| Product code | Thickness after free recovery (mm) | Standard Length (m/pc) | Standard Length (m/roll) |
| C101-φ19/6 | 2.5 | 1.22 | 15 |
| C101-φ30/10 | 3 | 1.22 | 15 |
| C101-φ35/12 | 3 | 1.22 | 15 |
| C101-φ40/16 | 3 | 1.22 | 15 |
| C101-φ45/18 | 3 | 1.22 | 15 |
| C101-φ54/24 | 3 | 1.22 | 15 |
| C101-φ60/29 | 3 | 1.22 | 15 |
| C101-φ76/38 | 3 | 1.22 | 15 |
| C101-φ100/49 | 3 | 1.22 | 15 |
| C101-φ130/50 | 3 | 1.22 | 15 |
