Hot!!! Flame retardant Bus Bar Insulation Heat Shrinkable Tubing
- 1100 Meter / Meters per Month
- Dalian China
- T/T
You May Like
-
S1-10 Flame Retardant Bus Bar insulation heat shrinkable tubing
-
S1(n)-35 Halogen free bus bar insulation heat shrinkable tubing
-
Medium voltage Halogen free bus bar insulation heat shrink tubing
-
Low voltage Polyolefin Bus Bar Insulation Heat shrink tubing
-
Trifurcated HST Semi-Conductive/Insulation/Elastomeric insulation
-
C105 Polyolefin Semi-Conductive/Insulation Double Layer Heat Shrinkable Tubing
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S1-35 | Type | Heat Shrinkable | |
| Material | Other, Polyolefin, Polyolefin |
Product Description

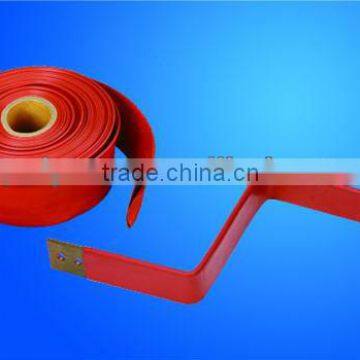

Hot!!! Flame retardant Bus Bar Insulation Heat Shrinkable Tubing
Voltage class 36kV Ideal for high voltage bus bar insulation
Heavy wall heat shrinkable tubing for insulation and protecting busbar against flashover caused by accidental bridging. Allows the air spacing between busbar to be kept at minimum when space is limited in switchgear cabinets. Easy to position on a variety of curved and bent busbar of both rectangular and circular shapes.
1.Reduces busbar clearance requirement
2.Provides more freedom in designing switchgear cabinets when space is limited
3.Suitable for insulating busbar up to 36kV
4.Protects against short circuit and electrical leakage caused by small animals
5.Protects against corrosion and other contaminants that may cause accidental flashover
6.Available in continuous length for convenient and economical installation
7.Highly flame retardant
8.RoHS compliant, halogen free
Operating temperature: -40°C to 105°C
Shrink temperature: 125°C
Color: Red
Cross references:
Sumitomo: IRRAX sleeve SBI 350
Contact Us
- Union Polymer Material Co., Ltd.
- Contact namecrystal zhou Chat Now
- Phone0086-411-87166661-621
- AddressTang Village , Shihe Street , Jinzhou Distict Dalian City, Liaoning Province. China, Dalian, Liaoning
