33kV outdoor termination/ indoor termination
Negotiable
/ Set
100 Sets(Min. Order)
- Dalian
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | C 8.7/15 | Type | Insulation Sleeving | |
| Material | PE | Application | High Voltage | |
| Rated Voltage | 8.7/15voltage |
Product Description
Specifications
Cable accessories,Voltage Class 8.7/15 kV
ideal for indoor/outdoor electrical terminals and cable joints
Cable accessories

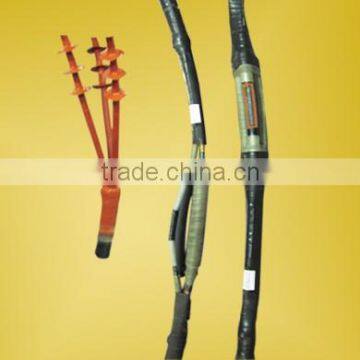

33 kV Heat Shrinkable Cable Accessories
Voltage Class 8.7/15 kV ideal for indoor/outdoor electrical terminals and cable joints
Heat shrinkable cable accessories for protection of indoor/outdoor electrical terminals and cable joints under 15 kV
Applications
Widely usedin electricity supply systemsin oil
refinery ,metallurgy,railway ports and other area
where safety and reliability of electricity supply is
vital for daily operation
Features/Benefits
Shrink Ratio
Transverse shrinkage≥50
Longitudinal shrinkage∠5
Long Life Expectancy 20years at-55~105
Reliable light weight easy to instll
Temperature Range
Operating Temperature :-55 105
ShrinkTemper: 120 140
Technical Details:
| Test item | 8.7/15kV heat shrinkable cable accessory | |
| Test standard | Typical Data | |
| Work frequency dryvoltage withstand | 45 | no breakdown andno flashover |
| Impact voltage withstand | 105 kV/±10times | no breakdown |
| Work frequency wetvoltage withstand | 45 kV/1min | no breakdown andno flashover |
| D.C.voltage withstand | 52 kV/15min | no breakdown andno flashover |
| Work frequency long termvoltage withstand | 35 kV/4hrs | no breakdown andno flashover |
| Part discharge(kV,pc) | 13, ≤20 | 13,10 |
Product Selection
3 cores indoor XLPE terminations | Product code | 3 cores outdoor XLPE terminations | Product code | 3 cores XLPE cable joints | Product code | Size for conductor (mm2) |
NSY-1031 | WSY-1031 | JSY-1031 | 4-35 | |||
NSY-1032 | WSY-1032 | JSY-1032 | 35-50 | |||
NSY-1033 | WSY-1033 | JSY-1033 | 50-150 | |||
NSY-1034 | WSY-1034 | JSY-1034 | 185-300 |
