4,000/pcs/roll/ctn.

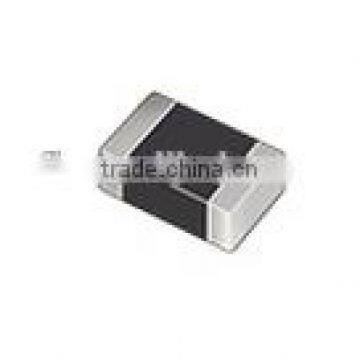

0805 1.0uH 800mA 0.238ohm MuRata LQM21PN1R0MC0D SMD Chip Ferrite Core Power Inductor


1.  Specification

Brand name	muRata
Part No.	LQM21PN1R0NGCD
Inductance	1.0uH
Tolerance	±30%
Inductance test frequency	1MHZ
Rated current (Itemp) (Based on Temperature rise)	900mA
Max. of DC resistance	0.125Ω
Avg. of DC resistance	0.10Ω ±25%
Self resonance frequency (min.)	50MHz
Operating temperature range (Self-temperature rise is not included)	-55~125°c
Class of magnetic shield	Magnetic shield of ferrite

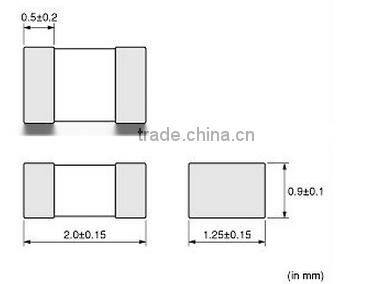

Shape
L size	2.0 ±0.15mm
W size	1.25 ±0.15mm
T size	0.9 ±0.1mm
Size code in inch(mm)	0805 (2012)
Reference
Packaging	φ180mm  Paper taping & Reel
Pack Quantity	4000 pcs/reel
Category	Inductor
Family	power Inductor
Chip Inductors Mass Stock
We supply various electronic components and welcome your inquiries

2. Application

• For general purpose
• the high-frequency circuits of mobile communications equipment, such as mobile phones, wireless LAN, and others.

3. Feature

• Inductor of the multilayer & non-magnetic core structure.
• high Q (Quality factor) value
• Max. height 0.55 mm
• Reflow soldering applicable
• Complied with RoHS Directives
• Enables a smaller size and lower cost compared to the wire wound structure
• Enabling use in a wide range of applications





  4. About Inductor from muRata



  • Classification and Structure of Chip Inductor



    We also can provide various inductors from TDK, Samsung, Coilcraft, Taiyo, etc..

    and most of them were in stock.

    Any enquiry please feel free to contact us.
