0603 10uH 20% 1.17ohm MuRata LQM18FN100M00D SMD Power Choke Inductor

4,000/pcs/roll/ctn

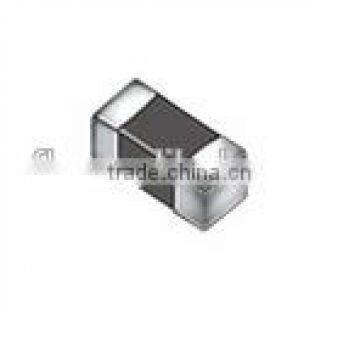

0603 10uH 20% 1.17ohm MuRata LQM18FN100M00D SMD Power Choke Inductor

1.  Specification

Brand name	muRata
Part No.	LQM18FN100M00D
Inductance	10uH
Tolerance	±20%
Inductance test frequency	1MHZ
Rated current (Isat) (Based on Inductance change)	50mA
Rated current (Itemp) (Based on Temperature rise)	50mA
Max. of DC resistance	1.17Ω
Avg. of DC resistance	0.90Ω ±30%
Self resonance frequency (min.)	30MHz
Operating temperature range (Self-temperature rise is not included)	-55~125°c
Class of magnetic shield	Magnetic shield of ferrite

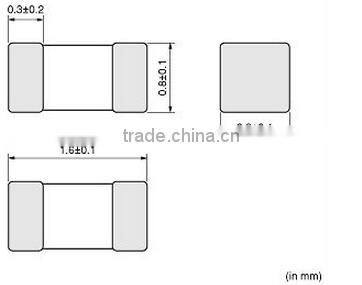

Shape
L size	1.6 ±0.1mm
W size	0.8 ±0.1mm
T size	0.8 ±0.1mm
Size code in inch(mm)	0603 (1608)
Reference
Packaging	φ180mm Paper taping & Reel
Pack Quantity	4000 pcs/reel
Category	Inductor
Family	RF Inductor
Chip Inductors Mass Stock
We supply various electronic components and welcome your inquiries

2. Application

• For general purpose
• the high-frequency circuits of mobile communications equipment, such as mobile phones, wireless LAN, and others.

3. Feature

• Inductor of the multilayer & non-magnetic core structure.
• high Q (Quality factor) value
• Max. height 0.55 mm
• Reflow soldering applicable
• Complied with RoHS Directives
• Enables a smaller size and lower cost compared to the wire wound structure
• Enabling use in a wide range of applications





  4. About Inductor from muRata

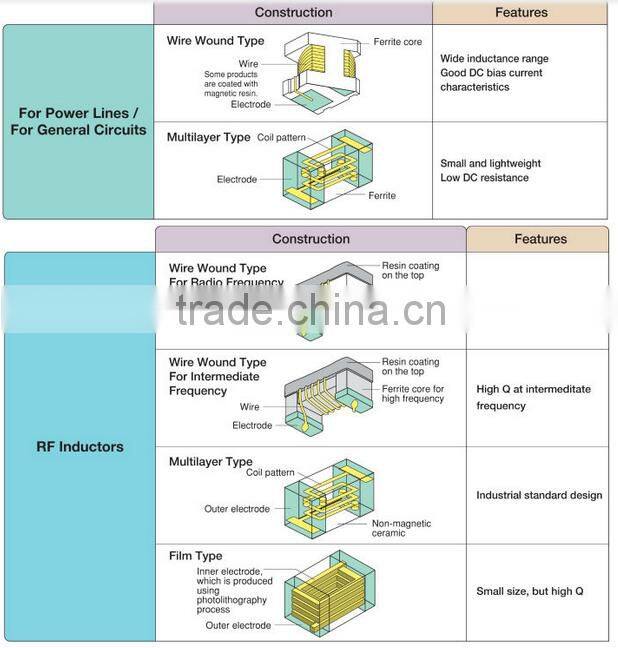

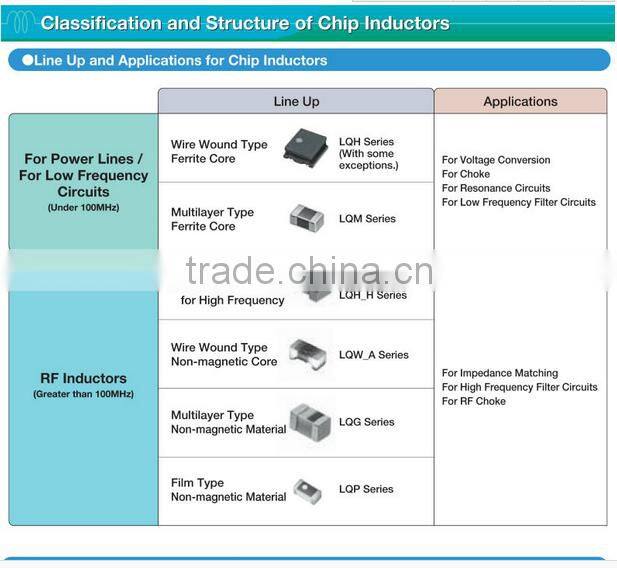

  • Classification and Structure of Chip Inductor



    We also can provide various inductors from TDK, Samsung, Coilcraft, Taiyo, etc..

    and most of them were in stock.

    Any enquiry please feel free to contact us.



    Packaging & Shipping



    • Items will be shipped within 1-3 business days after the payment is confirmed.

    • We can ship all over the world by DHL, UPS, FedEx, TNT EMS or other special method. Please contact us directly and we will use the way you prefer. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.

    • We are not responsible for any accidents, delays or other issues which are the responsibility of the shipping service.

    • Please Note: Any import fees or charges are buyer's responsibility. However, we will try our best to minimize them.





      Our Adventage

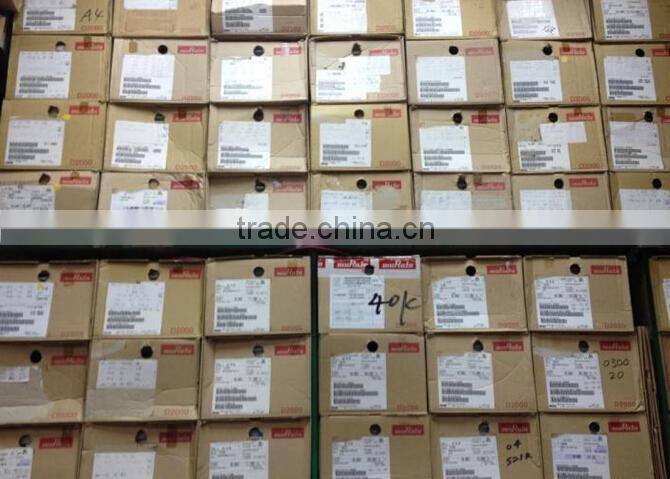

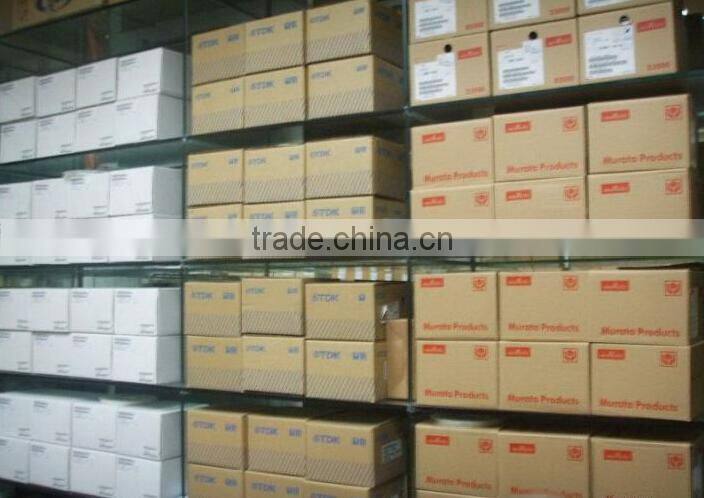

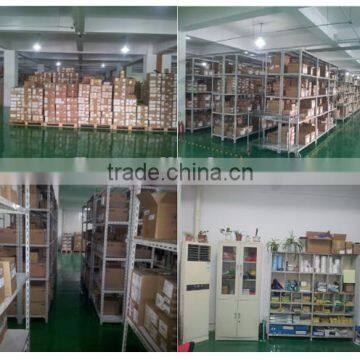

      • large inventory on hand for delivery

      • Favorable price

      • A multiplicity of source & stable supply

      • Customer-oriented

      • abundant business experience on marketing electronics components




        Our Business Philosophy



        1. Integrity – take credits and honesty as core values and behavior principles
        2. Customer priority – meet demand of clients in time, and create business opportunity together
        3. Globalization – internationalize and offer global service
        4. Sustainable operation – follow trend of technology progression and run the business continuously





      FAQ

      Q1: How can I contact you?



             You can contact us by E-mail or phonecall in any time. You also can visit our official website to learn more product specifications, photos or datasheet.

             Following is our contact information
