Home > Products > vacuum furnace > vacuum heat treatment furnace used for ceramics powder sintering and annealing heat treatment
vacuum heat treatment furnace used for ceramics powder sintering and annealing heat treatment
USD $1,800 - $6,500
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- according to your requirement
- T/T Credit Card
You May Like
-
Vacuum bright surface annealing furnace / bright annealing vacuum heat treatment furnace
-
Vacuum heat treatment furnace used for sintering, quenching , sintering/ vacuum furnace
-
small chamber vacuum furnace used for powder metallurgy sintering / vacuum sintering furnace
Quality Choice
-
small chamber vacuum furnace used for powder metallurgy sintering
-
metal injection molding products used vacuum sintering furnace
-
stainless steel base, carbide, ceramic materials sintering used vacuum heat treatment furnace
Product Details
| Condition | New | Type | Other, vacuum heat treatment furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | CYKY | Model Number | CYKY-1600V | |
| Voltage | 380V | Power(W) | 10kw | |
| Weight | 500 kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
vacuum heat treatment furnace used for ceramics powder sintering and annealing heat treatment
Product Description
CYKY series Vacuum sintering furnace is mainly used for sintering and annealing of powder metallurgy and ceramics. Also this chamber vacuum sintering furnace is used for high-temperature sintering of cemented carbide direct quenching aftering sintering , and annealing of metal parts and high-quality brazing.
| Specification of the high temperature vacuum heat treatment furnace | ||||
| Furnace construction |
| |||
| Chamber Size | standard chamber size: 100x100x100mm; 120x120x130mm; 150x150x150mm; 150x150x200mm; 200x200x200mm; 200x200x300mm; 300x300x300mm; 300x300x400mm other chamber size is customized. | |||
| Power | 2KW~30KW | |||
| Voltage | AC 204 to 380V 3 phases(please tell us when your place order.) | |||
| Max. Temperature | 1600 °C (< 2 hours) | |||
| Continuous work temp. | 1500°C | |||
| Max. Heating Rate | 15 °C /min | |||
| Temperature controller | • PID automatic control and auto-tune function. • 50 programmable segments for precise control. • Built in protection for over-heated and broken Thermal couple. • digital operation panel, also touch screen controller can be desigend. | |||
| vacuum system | Double rotary pump + Diffusion pump + vacuum gauge + high vacuum valves + stainless steel bellows (digital vacuum gauge is optional) | |||
| Max. vacuum degree | 7x10-3 Pa (with molecular pump system) | |||
| Temperature Accuracy | +/- 1 °C | |||
| Heating Element | MoSi2 heating element | |||
| Heating Element | B type | |||
| Gross weight with package | 120Kgs~500kg | |||
| Accessories (free charge) |
| |||
| Software to control furnace through computer (if you need, additional order) |
| |||
| Warranty | One year limited warranty | |||
| Certificate |
| |||

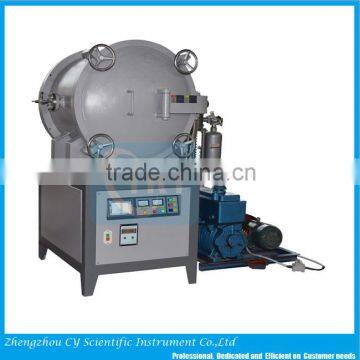

picture of the high temperature vacuum furnace / vacuum heat treatment furnace
water chiller used for water cooling
