Home > Products > vacuum furnace > high temperature high vacuum chamber furnace / vacuum furnace for heat treatment
high temperature high vacuum chamber furnace / vacuum furnace for heat treatment
- 500 Set / Sets per Month
- China port
- T/T Credit Card
You May Like
-
laboratory vacuum furnace / vacuum furnace for metal heat treatment / vacuum chamber furnace
-
small lab vacuum furnace / compact chamber vacuum furnace for sale
-
Vacuum furnace for quenching of high speed Steel heat treatment , vacuum furnace
-
Vacuum furnace for brazing, sintering , melting heat treatment / vacuum sintering furnace
-
China high temperature electric vacuum furnace / Auminum Vacuum Brazing Furnace
-
china high vacuum degree vacuum brazing furnace for alloy heat treatment for sale
Product Details
| Brand Name | CYKY | Model Number | CY-V1700 | |
| Place of Origin | Henan, China |
Product Description
high temperature high vacuum chamber furnace / vacuum furnace for heat treatment / vacuum furnace
Description of the vacuum heat treatment furnace:
1700C vacuum furnace is mainly used in sinter cemented carbides, stainless steel line molding, stainless steel fiber, magnetic materials,and ceramic materials,and it also can be used in power metallurgy, refractory metals and magnetic material industry.We can sinter super hard, alloy,tungsten, copper, tantalum,stainless steel and rare-earth permanent magnetic material. Since the heater symmetrical distribute along the vacuum chamber, and temperature uniformity is high,you can actualize semi-automatic and automatic control according to your demands.
Outstanding features of the vacuum furnace
1.Maximum energy efficiency is achieved by surrounding chamber thermal-efficient alumina fiber ceramic insulation.
2.Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
3.PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
4.Power control with 30 segments programmable.
Technical parameters of the vacuum heat treatment furnace/ vacuum furnace
| Model | CY-V1700 |
| Max. temperature | 1700℃ |
| Working temperature | 1600℃ |
| Temperature accuracy | +/-1℃ |
| Heating rate | 0-20C/min |
| Dimension | 200×200×300mm |
| Temperature control | Digital 50 segments programmable |
| Max. vacuum level | 7*10ˆ(-3)Pa |
| Heating element | MoSi2 rods |
| Refractory material | Alumina ceramic fiber |
| Thermal couple | B type |
| Rated power | 5KW |
| Working voltage | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
Special details can be according to your detailed requirement!!!!!!

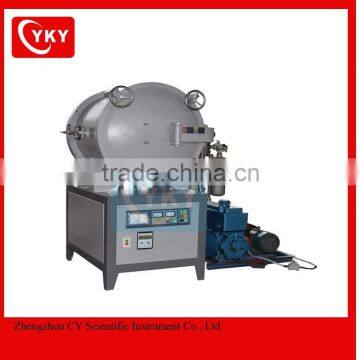

Detailed photos of the vacuum furnace:
