Product Details
| Brand Name | CY | Model Number | CY-O1200-80IT |
Product Description
1200C laboratory heat treatment quartz tube furnace/ horizontal tube furnace for sale
Application of horizontal tube furnace
1. Heat treatment under the vacuum of atmosphere surroundings
2.CVD experiment
3.Preparation of carbon nanotubes
4.Growth of graphene
5.Crystalline silicon substrate coating
6.Diffusion welding for metal materials
7.Diamond heat treatment
Features of horizontal tube furnace
1.Fast heating rate:20°c/min
2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc
3.LCD touch screen,easy to operation and real time monitoring.
4.50 steps programmable automatic control
5.Can connect with vacuum pump
6.PC interface control
Technical parameters of horizontal tube furnace
| Model | CY-O1200-80IT |
| Display | LCD touch screen |
| Chamber material | imported fiber |
| Heating element | imported alloy heating wire |
| Max.temperature | 1200℃ |
| Working temperature | ≤1150℃ |
| Heating rate | ≤20°c/min |
| Heating zone | single |
| Temperature zone length | 440mm |
| Thermostatic zone length | 200mm |
| Tube Material | high purity quartz |
| Tube Size | 50mm 60mm 80mm 100mm 1200mm |
| Tube length | 1200mm 1400mm |
| Flange connection | stainless steel flange |
| Control mode | PID automatic control via SCR power control |
| Temperature accuracy | ±1℃ |
| Working voltage | AC 220V 50-60Hz |
| Main power | 2.5kw |
| Packing | PLYwood box |
| Thermal couple | K type |
| Accessories | quartz tube 1pc, flange 1set, plug 4pcs,O-rings 8pcs, glove 1pair, alumina crucible 1set, furnace hook 1pc, manual book |

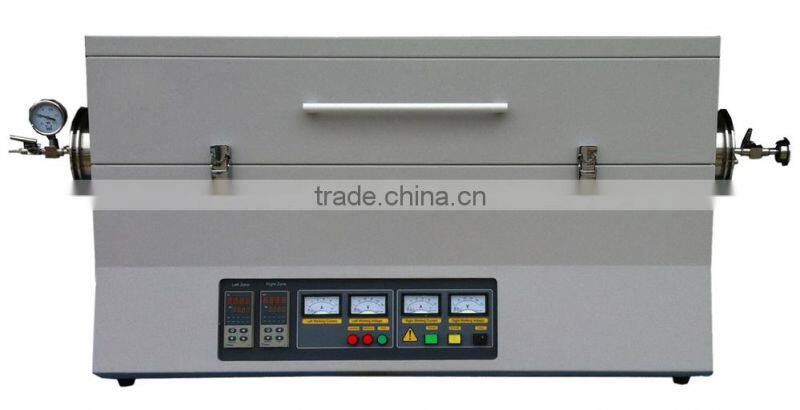

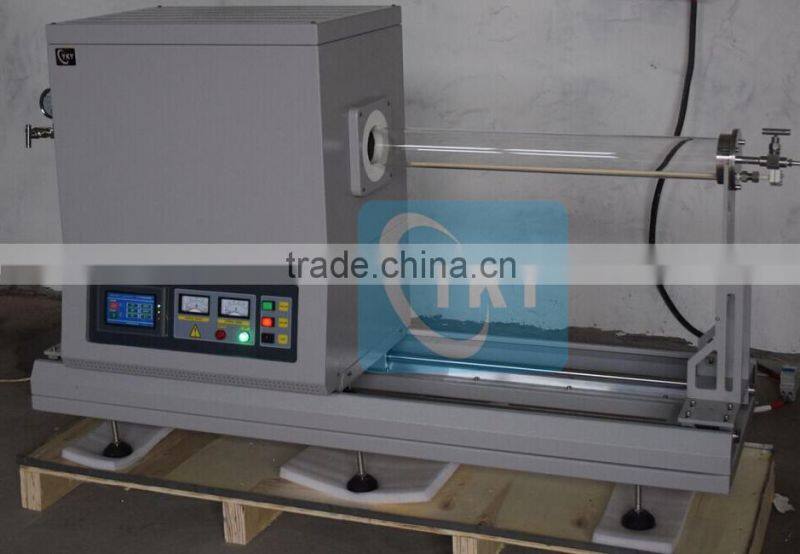

Picture of horizontal tube furnace
Packaging of horizontal tube furnace
PLY wood box as below picture, or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Other furnace for heat treatment

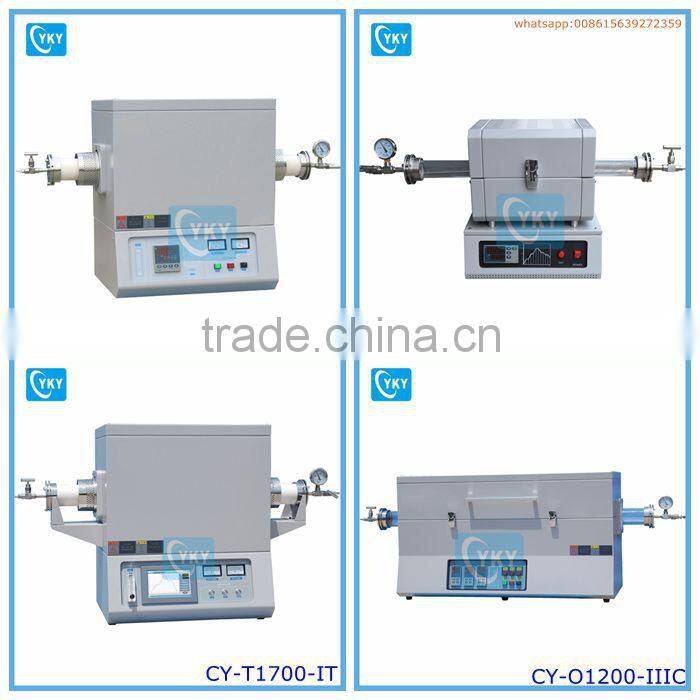

Similar tube furnace
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Processing room
Show room
