3 Rotary Targets Plasma Sputtering Coater w. Substrate Heater (500C) CYKY- VTC-16-3HD

FOB Price

USD $5,000 - $10,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Coating Production Line
Substrate	Other, Plasma Sputtering Coater	Coating	Vacuum Coating
Place of Origin	Henan, China	Brand Name	CYKY
Model Number	VTC-16-3HD	Voltage	110v- 480V
Dimension(LWH)	440mm * 330mm * 300mm	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Brief introduction of the 3 Rotary Targets Plasma Sputtering Coater

CYKY-VTC-16-3H is a CE certified compact Three Rotary Target Plasma Sputtering Coater with a

touch screen digital controller, and a substrate heater capable of heating up to 400°C.

It can coat 1- 3 types of metallic materials to samples with diameters up to 50 mm.

Three sputtering targets, Gold, Silver, Copper are included for immediate use.

Specification of the 3 Rotary Targets Plasma Sputtering Coater

Input Power	standard configuration: 220V AC, 50/ 60Hz, 700Watts (including vacuum pump) For using under 110VAC we will include a transformer for you. Please select the voltage in option bar.
Output Power	1600VDC 40mA max.
Specimen Chamber Size	Fused glass tube, 150 mm I.D. Dia x 150mm Height
Heating sample stage	One 50mm Dia. sample stage, which can be rotated in three positions by pushing a button. The substrate heater is built in the stage with a max. heating temperature of 500°C PID temperature controller with +/-1°C accuracy is built in touch screen control panel
Control Panel	6" color touch-screen control panel with PLC integration for easy operation One panel controls all parameters, including vacuum, current, target position and substrate heating temperature

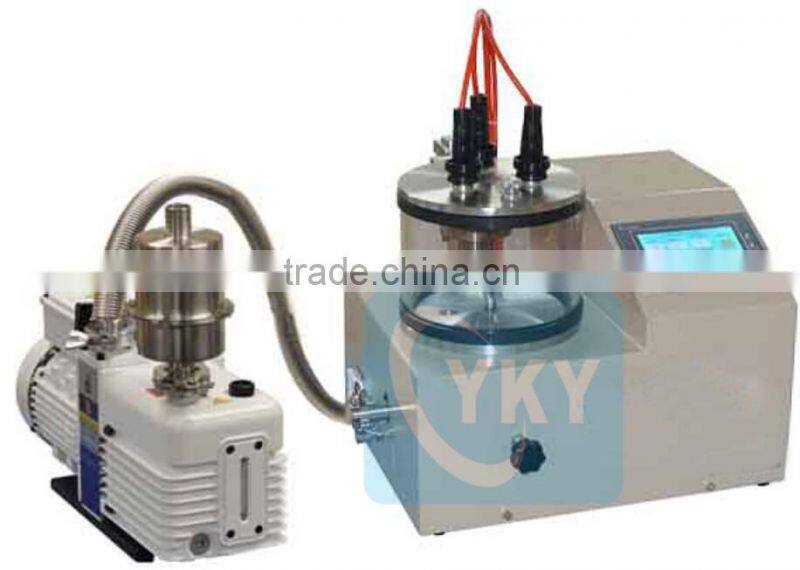

Vacuum	( not included ) Quality two stage vacuum pump with KF25 connector is required , but not included. Built in KF25 vacuum port for connect the coater to a vacuum pump The vacuum pump must plug in socket located in back of coater to achieve automatic control
Gas Atmosphere	One needle valve installed to allow Ar gas inlet to achieve better plasma coating
Target	Three Targets are included in standard package: Au, Ag and Cu targets. Size: 47 mm dia.x2.5mm Thick Optional targets is available upon request. Pt , Fe, Ni, Co, Pd, etc Note: Al, Mg, Zn light metal can not be coated using the coater.

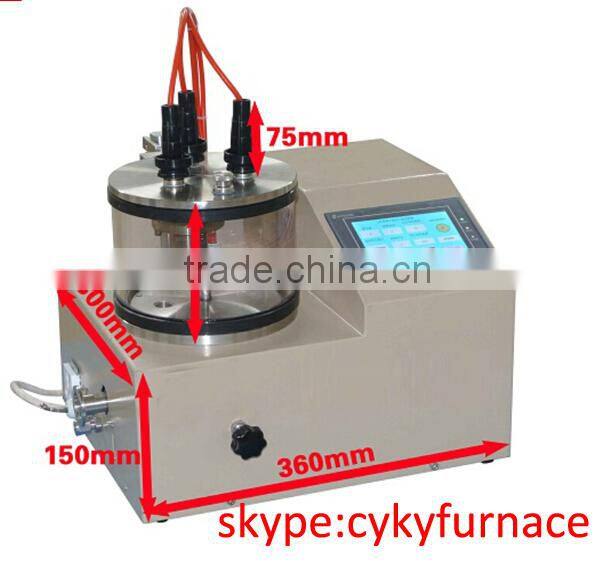

Dimensions	440mm × 330mm × 300mm (L×W×H)
neight weight	50KG

Detailed photos of the 3 Rotary Targets Plasma Sputtering Coater
