Induction furnace / scrap Iron,steel ,stainless steel Induction Melting Furnace Quality Choice

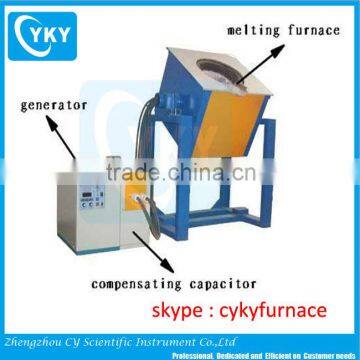

The composing of the MF induction metal melting furnace:

1.MF induction heating generator.

pensating capacitor

lting furnace

Options:

1.infrared sensor,

2.temperature controller.

3.water cooling systems.

4.others.

Brief Introduction of the Medium Frequency Induction Metal Melting Furnace:

Medium frequency induction melting furnaces are mainly used for the melting of steel, stainless steel, copper, brass, silver, gold, and aluminum materials, etc. melting capacity can be from 3kg to 500kg.

Three types of induction melting furnaces can be selected according to the way of pouring out, they are tilting furnace, push-up furnace and stationary furnace. According to the method of tilting, tilting furnace is divided into three kinds: manual tilting furnace, electrical tilting furnace and hydraulic tilting furnace.

Main features of MF induction melting equipment:

1,CYMF induction melting machine can be used for the melting of steel, stainless steel, brass, aluminum, gold, silver and so on.

2,because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.

3,wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.

4,compared with SCR medium frequency induction melting machine, it can save energy at least 20% and up.

5,small and light, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the college and researching companies to use.

6,24hours non-stop melting ability.

7,it's easy to change induction melting machine for different capacity, different material, different way of pouring out, to suitable for all kinds of requirements.

Main models and melting abilities:

The table below lists the main models and recommended maximum melting abilities. About 50 to 60 minutes are needed to finish one melting process at cool status of the brass melting furnace, at hot status of the induction melting equipment, only 30 to 50 minutes are needed.

Specification of Induction Melting Furnace:
