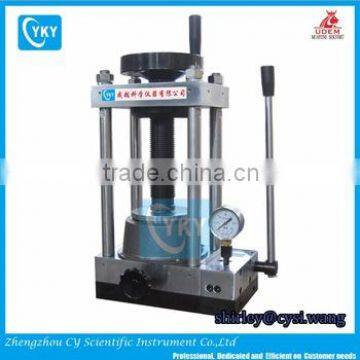

12T Laboratory Press with built in Hydraulic Pump & Safety Cover - YLJ-12
- Zhengzhou Qingdao etc.
- T/T D/P D/A Credit Card
You May Like
-
15T Laboratory Pellet Press with Hydraulic Pump - YLJ-15
-
24T Laboratory Press with Built in Hydraulic Pump & Protection Cover - YLJ-24
-
Laboratory hydraulic press for polymer and ceramic samples
-
60T Benchtop Electric Laboratory Hydraulic Press - EQ-YLJ-60A
-
12T Manunal operation Laboratory Hydralic Press Machine/Hand Operated Press Machine
-
hydraulic press machine /12T Laboratory Press machine with built in Hydraulic Pump / manual tablet press machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Henan, China | |
| Brand Name | CYKY | Model Number | YLJ-12 laboratory hydraulic press | |
| Voltage | as your requirements | Power(W) | 4KW | |
| Weight | 86KG | Dimension(L*W*H) | 1000x625x700mm | |
| Certification | CE/ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Laboratory hydraulic press/laboratory pellet press
Introduction of laboratory hydraulic press
Model EQ-YLJ-12 (updated from EQ-YLJ-12T) is a desktop manual pressing machine up to 12 metric tons for materials / chemistry research laboratories to prepare compound ceramic sample. EQ-YLJ-12 has built in Hydraulic pump with auto return function and transparent protection cover. It is suitable to be operated in a glove-box under oxygen and inert gas.
Technical parameter of laboratory hydraulic press:
Max Pressure | 12 metric tons ( 20 Mpa ) Pressure gauge is built in Optional: Precision digital pressure gauge is available at extra cost ( click pic below right to order )
|
Max Lifting Height of Bottom Cylinder | 25 mm |
Top Support Screw Adjustable Height | 150 mm |
Protection Cover | Transparent plastic ( click picture below ) for safety |
Dimensions of Machine
| 270mm(L) x 200mm(W) x 450mm(H) D1:90mm |
Length of Press Rocker | 16.5'' |
Net Weight | 30 Kg ( 66 lbs) |
Dimensions of Shipment | 40" x 25" x 28" |
Weight of Shipment | 120 lbs |
Press Dies |
|
Warranty | One year limited standard warranty |
Application Notes | This compact press machine can be placed in our VGB-3 ( put in through window and VGB-4 Glove box ( put in via airlock ) to press some air sensitive material under inert gas |
Vacuum gauge of laboratory hydraulic press
Working space of laboratory hydraulic press
Protect cover of laboratory hydraulic press
Pressing dies of laboratory hydraulic press
More laboratory press
1.One year free warranty.
2.All machines are debugged before shipment.
3.Lifetime technical support and service.
4.24 hours on line or phone or by email technical support.
5.We offer detailed machine manual and software manual.
6.Our factory make a vivid training CD.
7.Life-long free maintenance.
8.Free training in our factory.
Zhengzhou CY Scientific Instrument Co.,Ltd locate in hi-tech zone, Zhengzhou city.It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain furnace, tube furnace,muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc. determined to do advanced materials preparation equipment manufacturers and suppliers of leader.
