250C - 25T Manual Small Hydraulic Lamination Hot Press YLJ-HP88V / Hydraulic Press

FOB Price

US$ 1,200 - 3,900 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Hydraulic Lamination Hot Press
Application	Hydraulic Lamination Hot Press	Pressure	25t
Place of Origin	Henan, China	Brand Name	CYKY
Model Number	YLJ-HP88V	Voltage	110V -240V
Dimension(LWH)	48''(L) x 40''(W) x 44''(H)	Weight	150kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

250C - 25T manual Small Hydraulic Lamination Hot Press YLJ-HP88V / Hydraulic Press

Product Description

Brief introduction of the 250C - 25T Small Hydraulic Lamination Hot Press:

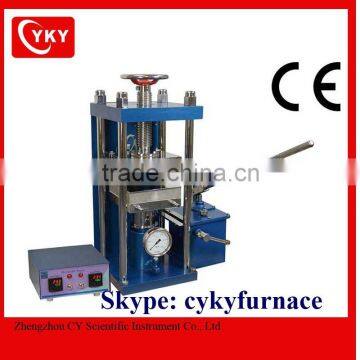

YLJ-HP88V is CE Certified and consists of a hydraulic press with manually operated oil pump & two heated platens.

The temperatures of heated platens are controlled by two digital temperature controllers separately up to 250°C.

Water cooling jackets are installed with heating plate that allow heated plate get faster cooling.

One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the platens.

It is an excellent tool to prepare polymer and ceramic samples.

Specification of the 250C - 25T Small Hydraulic Lamination Hot Press :

Max. Working Pressure	25 metric Tone ( 250 KN)
Pressure Gauge	Measuring Accuracy is +/-1.25 KN
Heated Platen Area	Platen Area: 200mm x 200mm Material: Casting Aluminium with 5 mm thick Headen Steel with Cr plated Surface: Flating with CNC grinding
Max. Travel Distance	140mm Max.
Max. Working Temperature	200°C continous 250°C for less 30 minutes
Heating Rate	3°C/min
Water Cooling Jacket	Two water cooling jacket are built on back of top and bottom heating plate separately with 1/4" water pipe connectors. Such a configuration allows you cool the sample as soon as the hot pressing process is completed. Please consider to use one recircultion water chiller to save water and protect the environment
Temperature Control	Two digital controller installed in one box with one point control and ayto-tune faction Temperature accuracy ±1°C.
Power Requirement	220VAC ( 208 - 240V) , 3000W max. Note:15A circuit breaker is required for 220V, 5' length power cable included, but no plug
Compliance	CE Certified
Machine Dimensions ]Pictures
Shipping Size	48‘’(L) x 40''(W) x 44''(H)
Shipping Weight	430 lbs

Display of the Small Hydraulic Lamination Hot Press
