Home > Products > hydraulic press > 50T Electric Cold Isostatic Pressing (CIP) Machine / electric hydraulic cold press machine
50T Electric Cold Isostatic Pressing (CIP) Machine / electric hydraulic cold press machine
- 500 Set / Sets per Month
- China port
- T/T Credit Card PayPal
You May Like
-
250C - 25T manual Small Hydraulic Lamination Hot Press
-
250C - 25T manual Small Hydraulic Lamination Hot Press YLJ-HP88V / Hydraulic Press
-
500C Vacuum Lamination Press with Two 6"x6" Heating Plate and Electric Hydraulic Pump - YLJ-VHP5-4
-
Electric vacuum lamination hot press designed for wafer bounding or thin film transformations
-
300C Vacuum Hot Press with Two 12"x12" Heating Plate and 40T Electric Hydraulic Pump - YLJ-VHP5-12
-
40T Vacuum Hot lamination Press with water chiller and pressure digital vacuum gauge
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | CYKY | Model Number | YLJ-CIP-50A | |
| Voltage | AC 208~240V, 50/60Hz | Gross Power | 330W | |
| Dimensions(L*W*H) | 450 (L) X 420(W) X 1010 (H), mm | Weight | 200kg | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
50T Electric Cold Isostatic Pressing (CIP) Machine / electric hydraulic cold press machine
Brief introduction of the CIP press machine / ceramic powder press machine:
YLJ-CIP-50A is a CE Certified electric cold isostatic pressing (CIP) machine operated via electric motor
with 50mm ID x 150mm H chamber up to 250 Mpa. It is excellent tool for preparing much high density ceramic rod,
disk or target. compared to dry die pressing.
Specification of the electric cold Isostatic Press Machine / CIP press machine
Voltage | AC 208~240V, 50/60Hz | ||||||||||||
Power | 330W | ||||||||||||
Hydraulic cylinder pressure | 0 - 50 T | ||||||||||||
CIP Vessel size | 50 I.D. x 150H, mm | ||||||||||||
Vessel Pressure |
| ||||||||||||
Dimension of Machine | 450 (L) X 420(W) X 1010 (H), mm | ||||||||||||
Net Weight | 200 Kg | ||||||||||||
Compliance | CE Certified | ||||||||||||
Warranty | One year |
Packing list of the 50T CIP press machine
| Name | Qty |
1 | Main machine (50T Electric hydraulic pressing machine) | 1 unit |

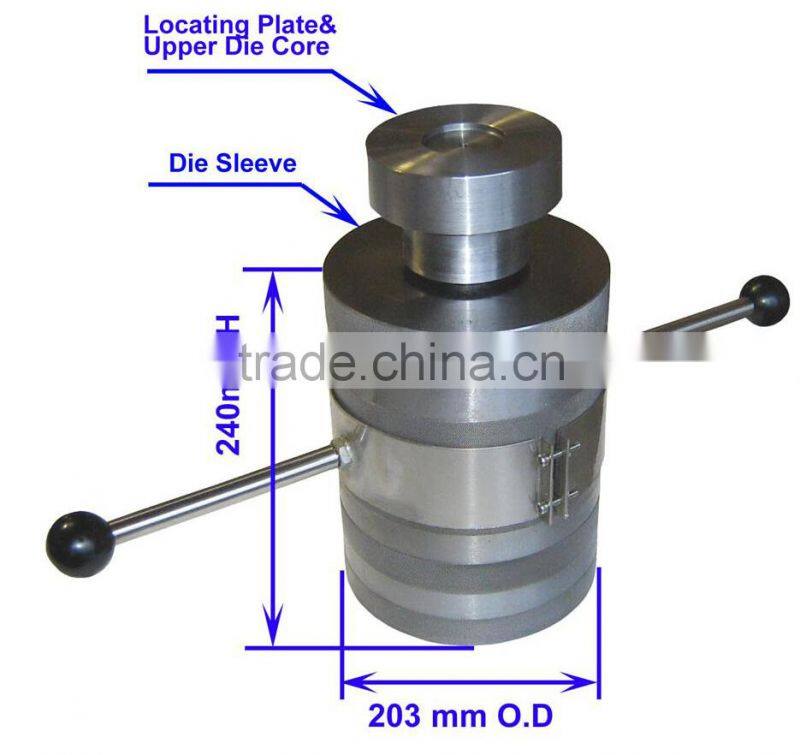

2 | CIP pressing die | 1 set |
3 | Seal kit (for top pressing die) | 5 pc |
4 | Holding bar (for carrying the CIP pressing die) | 2 pc |
5 | Pressing oil | 1 bottle |
6 | Hex-socket wrench (for top pressing die and degassing) | 1 pc |

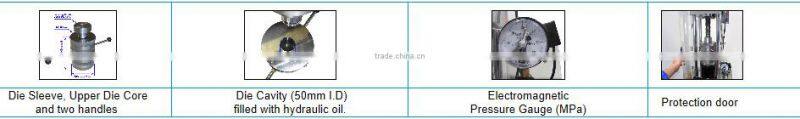

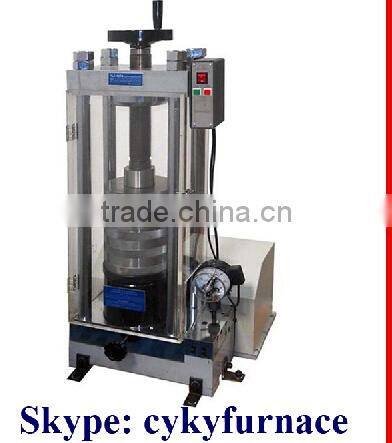

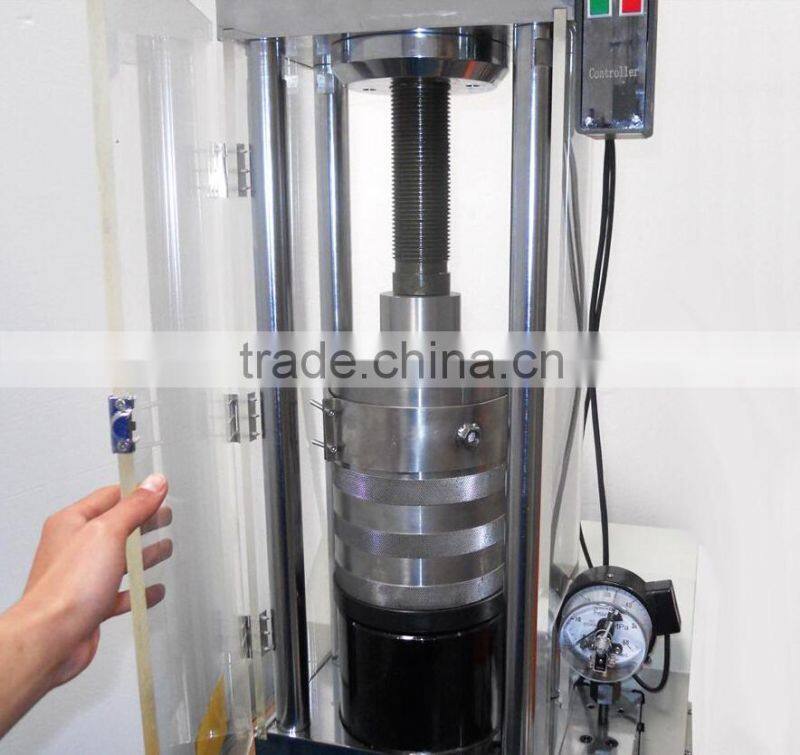

Display of the 50T Electric Cold Isostatic Pressing Machine:
other related products that you need:

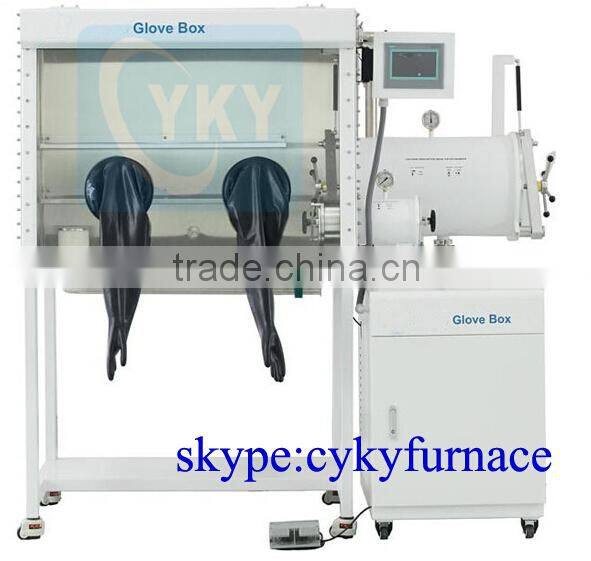

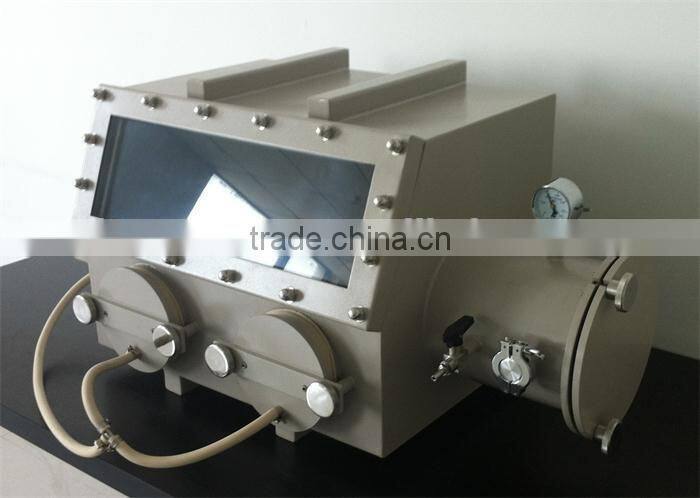

the glove box:
