WT6-30 automatic mobile block machine
- 300 Set / Sets per Month
- Qingdao port or any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
WT6-30 used concrete block making machine for sale
-
QT40-3B automatic cement hollow block making machine
-
WT6-30 New type Mobile automatic small production machinery
-
WT6-30 mobile cement brick equipment from China for small business
-
QT40-3B hollow block machine price in india
-
WT6-30 shandong mobile block machine / hollow block machine in philippines
Product Details
Condition | New | Type | Hollow Block Making Machine | |
Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
Method | Hydraulic Pressure | Automatic | Yes | |
Capacity | 6000-8000 pcs per day | Place of Origin | Shandong, China | |
Brand Name | Wante | Model Number | WT6-30 mobile machinery for small business in saudi arabia | |
Voltage | 220V/240V/380V/440V/adjustable | Power | 60KN | |
Dimension(L*W*H) | 3800X1850X2000mm | Certification | ISO9001&CE | |
Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |

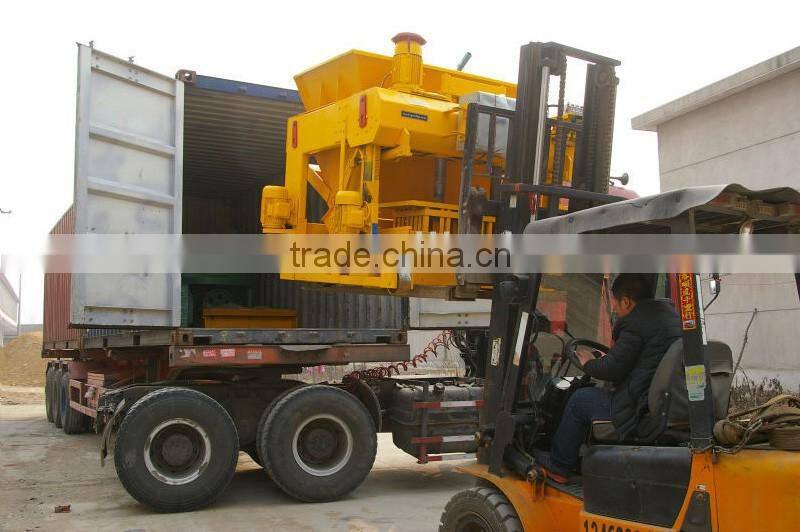

Nude package in one container
Plywood package in less than one container
Product Description
WT6-30 machinery information
Main specification and technical parameters | |
Overall size | 2100(L)×1850(W)×1800(H)mm |
Shaping cycle | 20-30 seconds |
Pallet size | No need pallet |
Vibration Force | 45KN |
Vibration style | molding vibration |
Electricity | 380V |
Total weight | 2600 KGS |
WT6-30 machinery details
1>Hydraulic&electric pressure
2>Cementation heat treatment technology
3>ISO9001&CE
WT6-30 machinery capacity
Block type | Block size | Pcs/mould | Pcs/hour | Pcs/day |
Hollow blocks | 400x200x200mm (16x8x8 inch) | 6 | 1000 | 7000-9000 |
Hollow blocks | 400x150x200mm (16x6x8 inch) | 8 | 1300 | 10000-13000 |
Hollow blocks | 400x250x200mm (16x10x8 inch) | 4 | 700 | 5600-7000 |
Hollow blocks | 400x120x200mm (16x5x8 inch) | 9 | 1500 | 12000-15000 |
Solid bricks | 250x175x75mm (10x7x3 inch) | 14 | 2016 | 16128-20160 |
WT6-30 machinery material proportion
This is the most popular proportion in making block making machine:
cement,sand,stone (standard concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
River sand | 40% |
Crushed stone | 45% |
Other specify | You can change the proportion depend on your needs. This block is heavy, but strong |
cement,slag (light concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
slag | 80-90% |
Other specify | You can change the proportion depend on your needs. This block is light, not so strong |
cement,sand,stone,slag
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
Sand | 10-20% |
Stone | 30-40% |
slag | 25-50% |
Other specify | You can change the proportion depend on your needs. This block is a little light, strong |

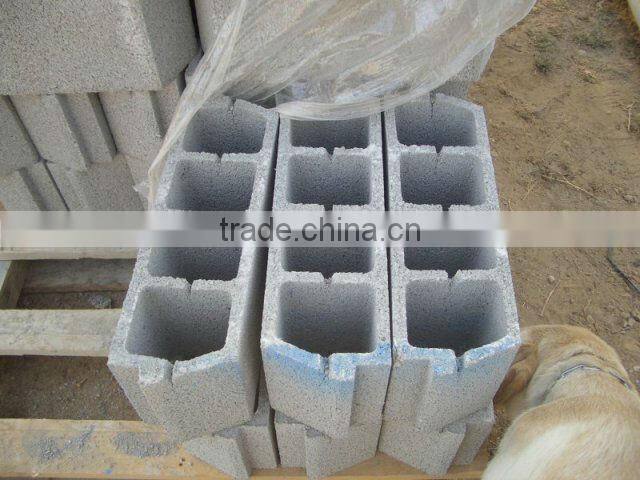

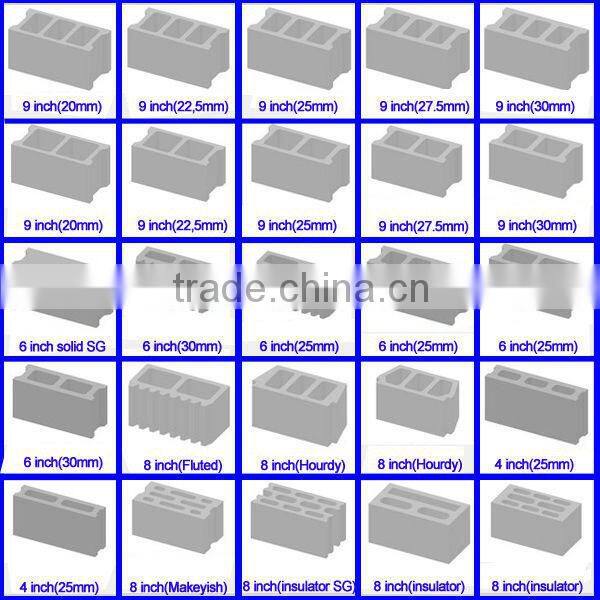

WT6-30 machinery Part of blocks

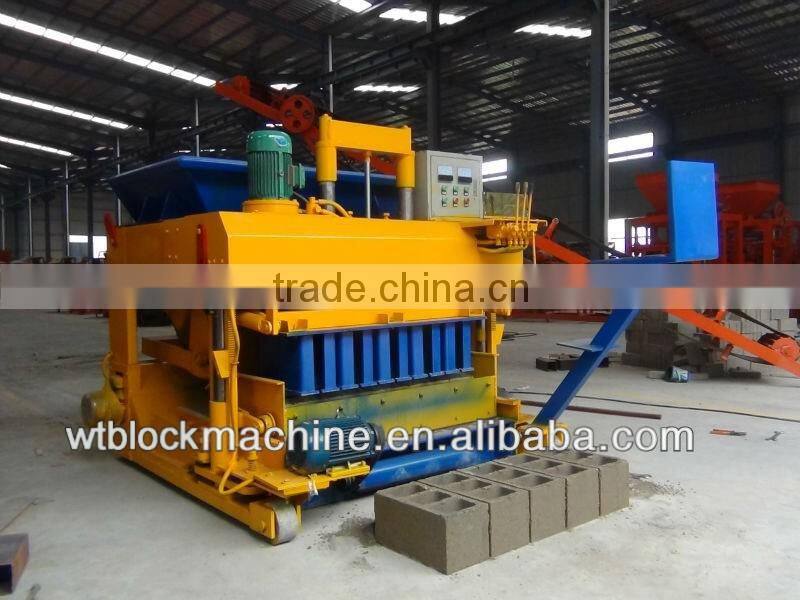

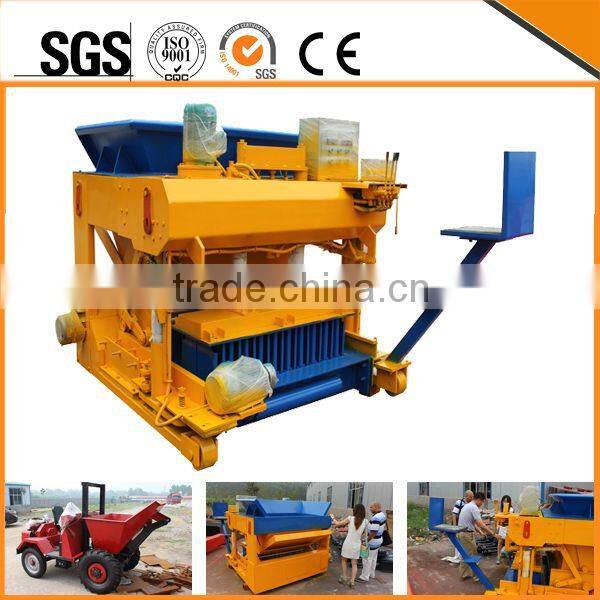

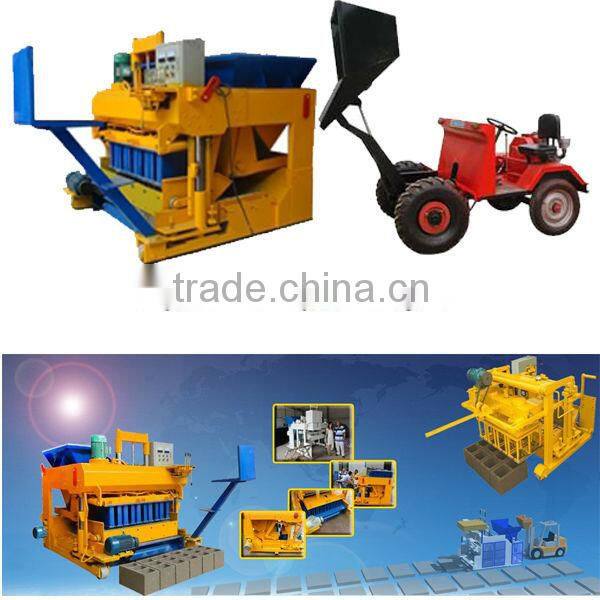

WT6-30 machinery picture showing
Welcome to our factory
If you have interest to our block machine ,Please contact me freely
I will do my best to help you
Contact person :Mandy Skype:mandy_chengli87 MB:008615206805586
...
