WT10-15 automatic hydraulic concrete curbstone plant price
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 10000pcs/day | Place of Origin | Shandong, China | |
| Brand Name | Wante | Model Number | WT10-15 | |
| Voltage | 380v | Power | 15kw,18.6kw | |
| Dimension(L*W*H) | 4800x2400x2100mm | Certification | ISO9001/CE/SGS | |
| Warranty | 3 years | After-sales Service Provided | Engineers available to service machinery overseas |

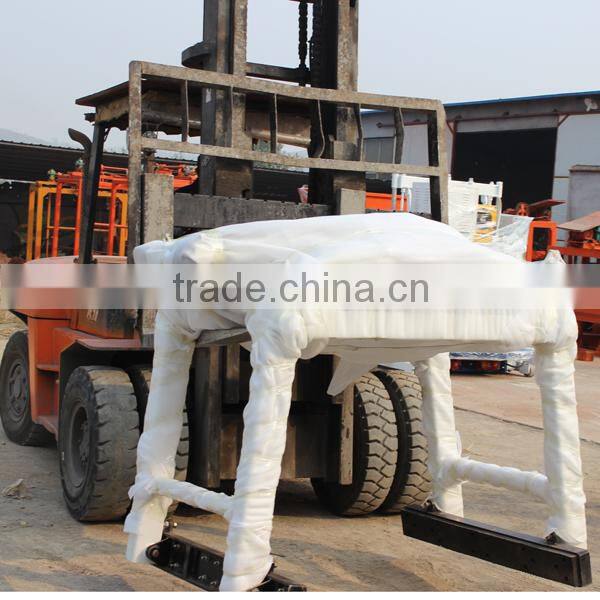

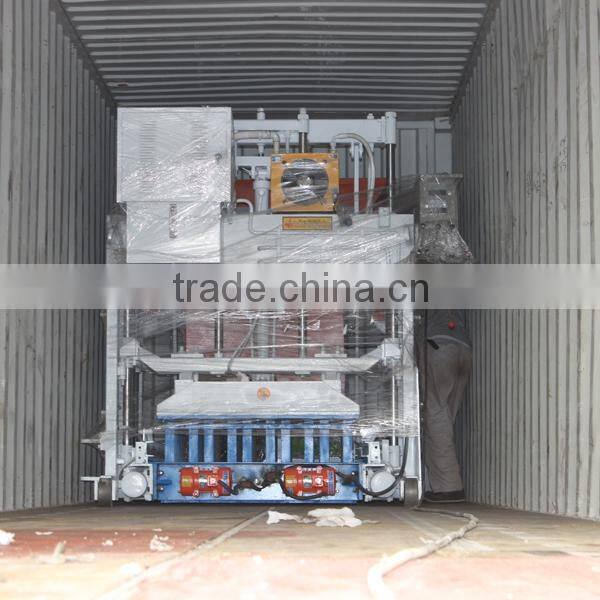

noamal seaworthy package
Product Description
our company wante machinery has a history of over 20 years specializing in block machine field and our products have been exported to over 100 countires. So if you choose
us ,we can guarantee high quality of products.
Product Description of WT10-15 automatic hydraulic concrete curbstone plant price
1.WT10-15 has larger productivity than the other small block machines.This kind of brick machine is
manufactured on the base of technical modifications to the original block shaping machines,that is changing
the former one-time-vibration into twice-vibrations of molding core.So the block density becomes higher,
shaping speed quicker and block strength more even.This model of machine can be suitable to the
customers who have any kinds of existing cement working sites
2.Advanced techniques made the host machine designed reasonably,and achieved box vibration,hydraulic
stripping,omnidirectional automatically movement.WT10-15works faster because of automatically feeding
system.High quality of steel and precision welding made the machine a longer service life and hydraulic
system made less fault during work.
3.WT10-15 has several function features,such as low price,reliable performance,easy operated,stable,
lower power consumption(just one sixth power consumption of the machine which has the same output).
Mass raw material can be used during production,for concrete,cement,small stone,powder,sand,coal
gangue,slag,construction waste and so on.
Main technical parameter of WT10-15 automatic hydraulic concrete curbstone plant price
WT10-15 Mobile concrete mixing and concrete brick making plant brief introduction main technical parameters | |
Overall dimension | 3150*1800*2400mm |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 16KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity | 2000-9000Pcs/hour |
Types of bricks can be made | 390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method | Automatically move and hydraulic steering |
Excitation way | Three-dimensional box excitation |
Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |

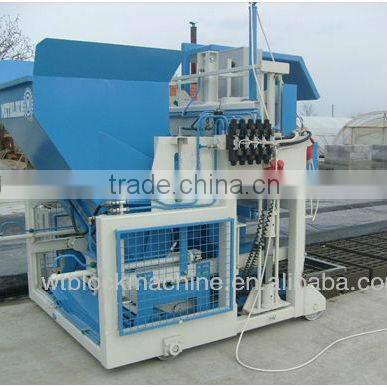

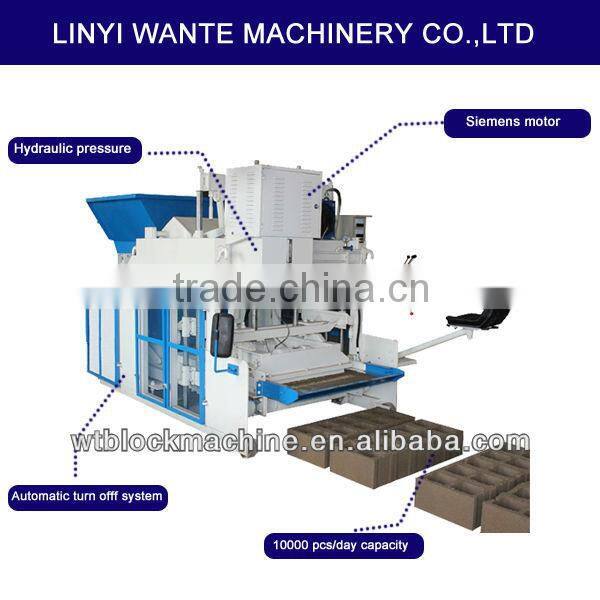

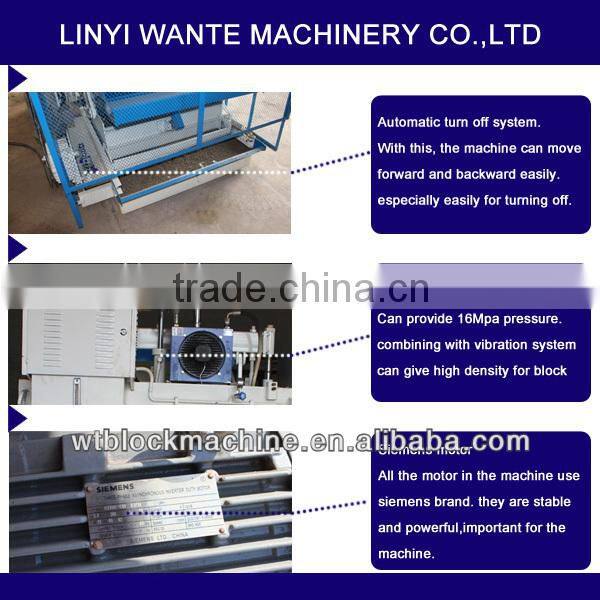

photos of mobile concrete block machine WT10-15automatic hydraulic concrete curbstone plant price
block size of WT10-15 automatic hydraulic concrete curbstone plant price
Brick size (mm)/(inch) | Pcs/mould | Pcs/hour |
530x100x200mm (20x4x8 inch) | 12 | 1728-2160 |
530x150x200mm (20x6x8 inch) | 8 | 1152-1440 |
530x200x200mm (20x8x8 inch) | 6 | 864-1080 |
400x100x200mm (16x4x8 inch) | 18 | 2592-3240 |
400x125x200mm (16x5x8 inch) | 14 | 2532-3360 |
400x150x200mm (16x6x8 inch) | 12 | 1728-2160 |
400x200x200mm (16x8x8 inch) | 10 | 1440-1800 |

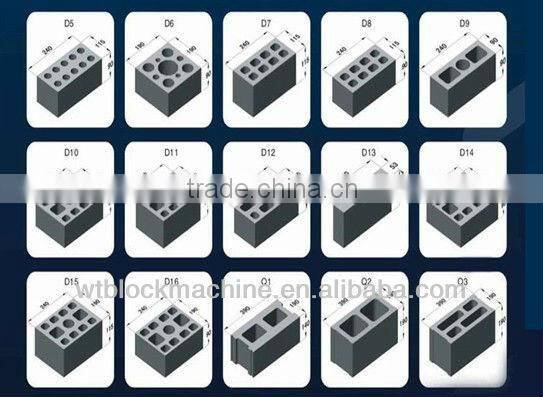

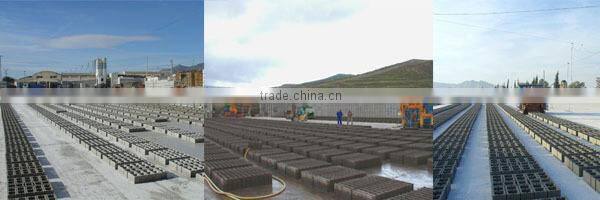

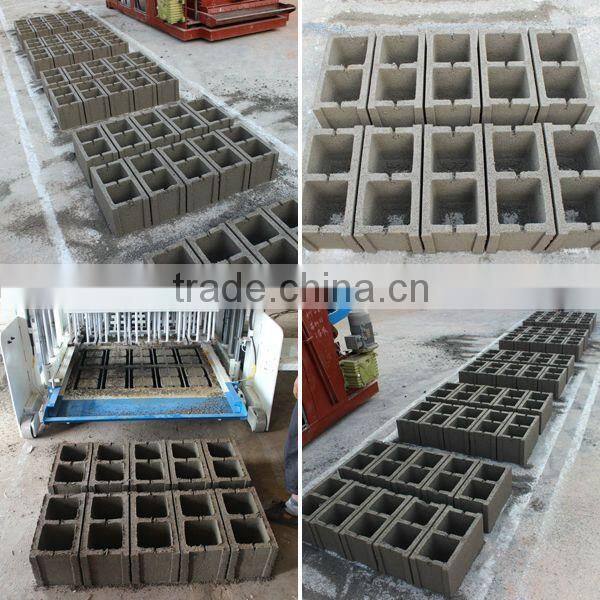

blocks that mobile concrete block machine WT10-15automatic hydraulic concrete curbstone plant price
raw material of mobile concrete block machine WT10-15 automatic hydraulic concrete curbstone plant price
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
