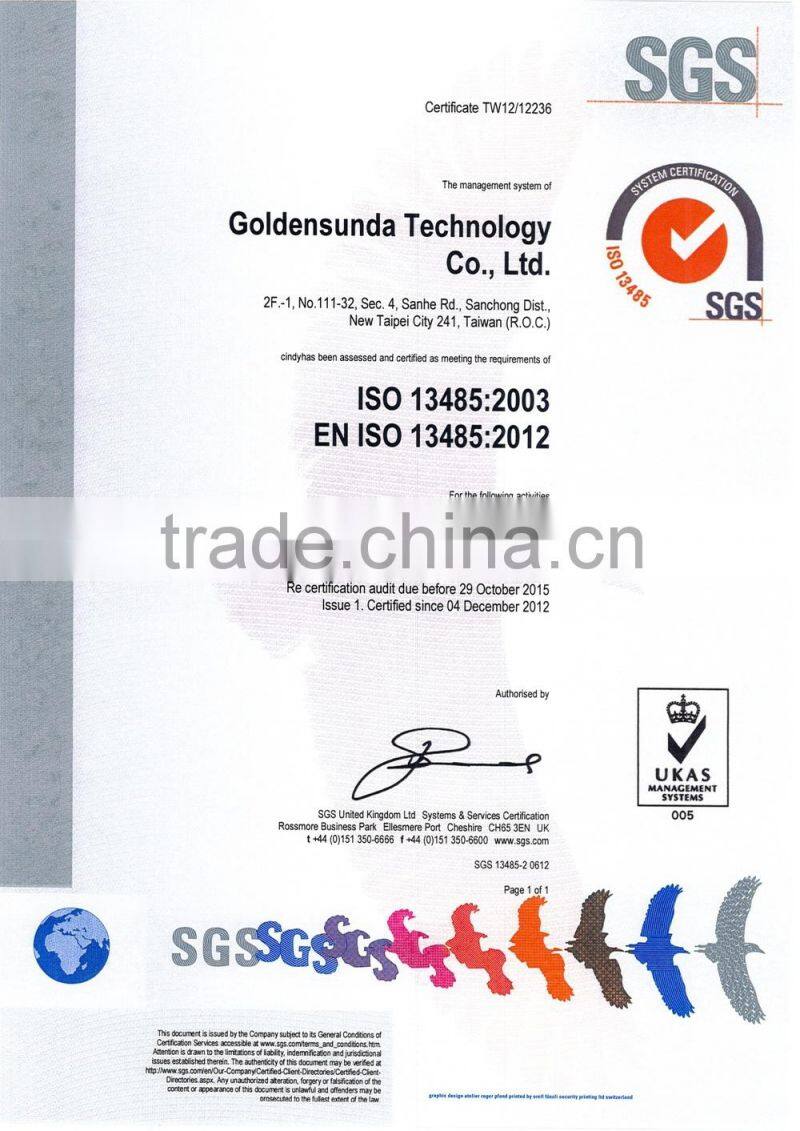

ISO13485 Electrical Physical Therapy Tens

  On line trouble shooting by e-mail or skype is available.

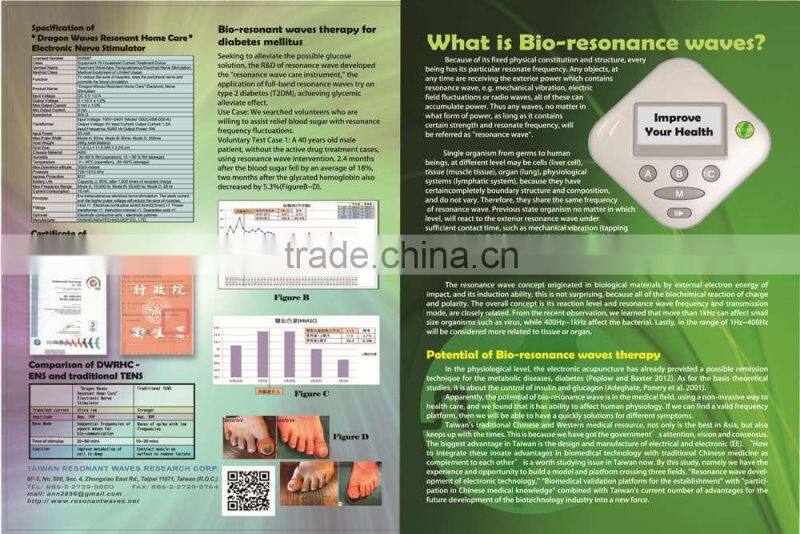

 What is resonant wave?

Because of its fixed physical constitution and structure, every being has it particular resonate frequency, Any objects, at any time are receiving the exterior power which contains resonance wave, e.g. mechanical vibration, electric field fluctuations or radio waves, all of these can accumulate power. Thus any waves, no matter in what form of power, as long as it contains certain strength and resonate frequency, will be referred as "resonance wave".

Single organism from germs to human beings, at different level may be cells (liver cell), tissue (muscle tissue), organ (lung), physiological systems (lymphatic system), because they have certain completely boundary structure and composition, and do not vary, therefore they share the same frequency of resonance wave. Previous state organism no matter in which level, will react to the exterior resonance wave under sufficient contact time, such as mechanical vibration (tapping massage), electric field fluctuations (dragon wave health care resonance wave) or radio waves (far infrared germanium metal) , in obvious traits. Any particular strength connected with resonance wave and affects this creature in particular level, we can refer this wave motion as "Bio-resonance".

The resonance wave concept originated in biological materials by external electron energy of impact, and its induction ability, this is not surprising, because all of the biochemical reaction of charge and polarity. The overall concept is its reaction level and resonance wave frequency and transmission mode, are closely related to. From the recent observation, we learned that more than 1kHz can affect small size organisms such as virus, while 400Hz~1kHz affect the bacterial. Lastly, in the range of 1Hz~400Hz will be considered more related to tissue or organ.

With a basic cognition above me mentioned above, the design and experiment of resonance wave frequency will play a great utility, and also provide the base for this field sufficiently. Those days in medicine, drug effect, or we can refer it as molecule influence, is the mainstream; however, for the first ten years in 21st Century non-invasive imaging detection has been quite advanced and popular. The application of the principle of energy is to absorb uneven resonance; we are applying the biological resonance concept daily in our life without awareness. Unfortunately, few people are aware and understand in controlling the resonance wave energy in a proper way, can assist the previous shortcomings. In biomedical field always advocate that we human must have some "appropriate amount of exercise" to stay young and healthy, however, it is only a high level of muscle activity in this stage. While the resonance effect, can provide cellular even in molecular for a certain level of "exercise" and it contains high potential for anti-aging and elimination of free radicals. If this system can verify through the experiment, it will set an example in this field.

 Box dimension : 21.2 x 15.2 x 6.7 cm

ISO 13485 Physical Therapy Vibration Machine, Transcutaneous Electrical Nerve Stimulation

Physical Therapy of Bio-Resonance for Diabetes, Functional Transcutaneous Electrical Nerve Stimulation

•  Input voltage: AC 100V ~ 240V
•  Input frequency: 50/60 hz
•  Input current: 0.09~0.18 A
•  Output voltage: DC 5 V
•  Output current: 1.2A
•  Output power: 6W

Environmental Requirements
•  Ambient temperature and humidity: 0 ~ 40 ℃ 30 ~ 85%RH
•  Storage temperature and humidity:-20~50 ℃ 10~95%RH

Instructions for Use :

For the first time or every time using the machine, all output adjustment button must be on the OFF segment, so that you can switch it on.

• Before using it, connect the transformer wire with the socket or use the battery power.
• Press the power button for 2 seconds to enter the main menu (A, B, C)

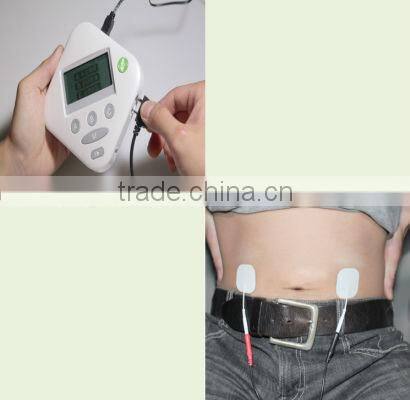

• Attached the electrode patches to the skin area where you want to stimulate.
• Switch on any group (A, B, C) and press Enter (||») button to output the pulse, and you can adjust the output strength to comfort strength.
• While using the machine, you can press (M) to get back to the Menu, (+, -) to adjust the strength or (||» ) to pause.
• After using the machine, you must shut down all output adjustment button to OFF, so that you can smoothly switch it on next time.
• After using the machine, please shut down machine first before you collect the attach patch, transformer wire and conductive wire.
• When the low battery indication light shines, please charge the battery.



Warnings and Precautions :

 • Do not use this machine around your heart, above your neck, on your head, around your mouth, genitals

   and infected skin.
 • Do not use this machine together with other devices or ointment including spray coating.
 • Do not insert the electrode wire connector, except into places of the host electrode wire connector (output

   socket).
 • In order to avoid any potential risk, do not use this machine while sleeping or car driving.
 • In order to avoid electric shock, do not use this machine in the high humidity environment, such as

   bathroom, tub, shower.
 • Do not wear any metal objects to contact patch while using the machine.
 • In order to avoid itching or inflammation, do not attach the patch to your skin after using the machine.
 • Do not share your patch with others.
 • Avoid using the patch if it is polluted.
 • If you feel any discomfort while using the machine, please stop using it immediately.

Contraindications :

 • Those who installed a pacemaker.
 • Patients with heart disease or heart failure.
 • Pregnant women and infants.
 • Those who implanted electronic medical devices, such as artificial heart-lung pacemaker, artificial organ.
 • Patients with cancer, malignant tumors, acute diseases, infectious diseases, high fever, skin disease area,  • perceptual hypofunction, initial bone trauma (within 72 hours).
 • Do not use it with other electronic medical instruments. (Such as the respirator, electrocardiograph and

   heart medical systems, etc.)
• Those who implanted metal in body.

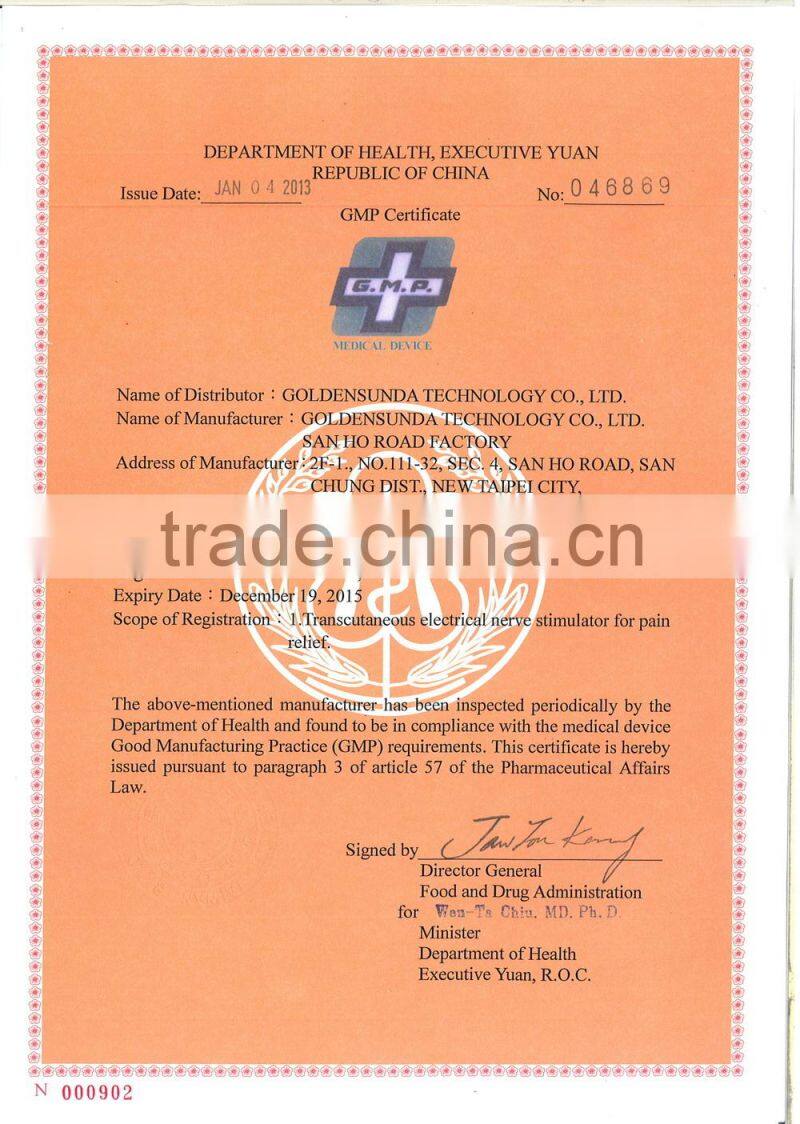

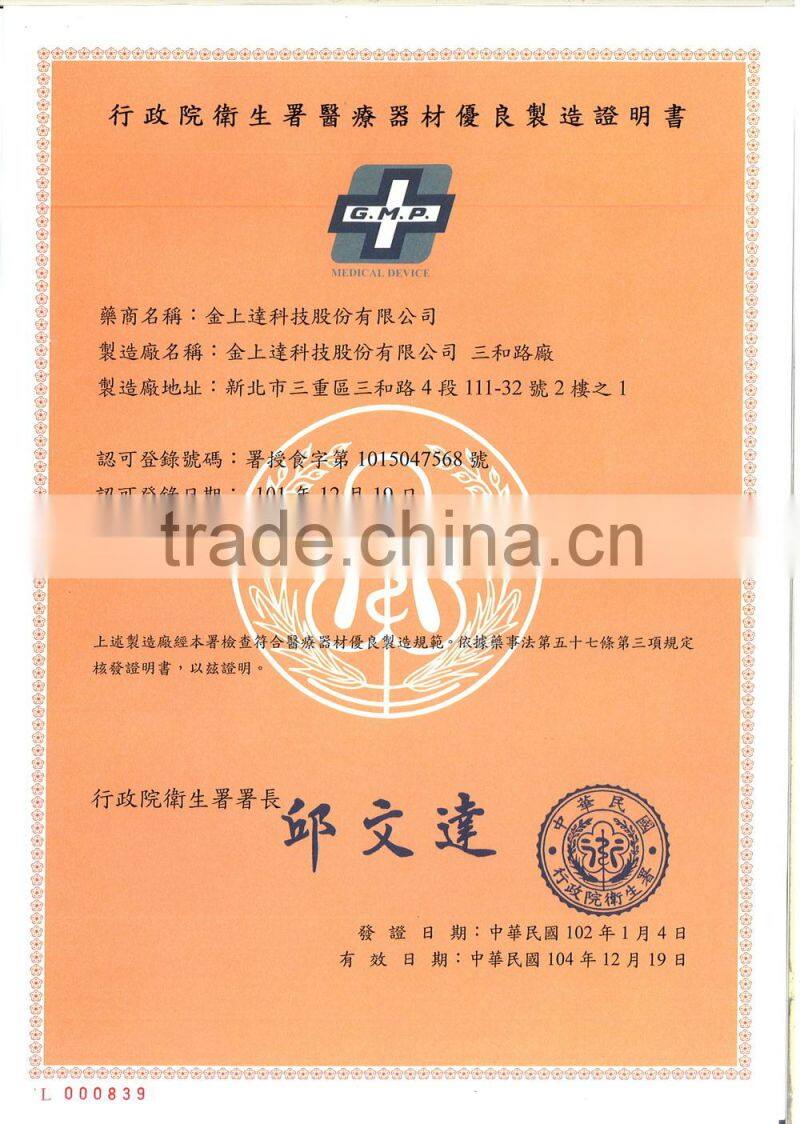

No. 003997 medical device manufacturing of Department of Health, Taiwan. GMP manufacturing plant, in line with ISO 13485.
