Home > Products > Wire to Board Connectors > PCB 2.5mm Pitch Connector

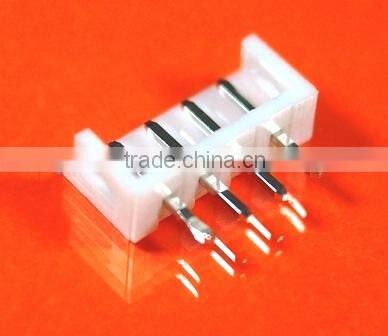

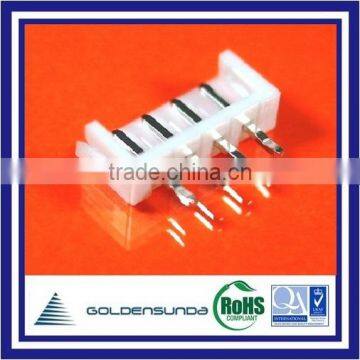

PCB 2.5mm Pitch Connector
- Taiwan Port
You May Like
-
2.5mm Pitch PCB Connector 2 ~ 10 Pin Available DIP 180 Single Row
-
2.5mm Wire to Board Connector 2 ~ 10 Pin DIP 90 Right Angle Single Row
-
2.5mm Pitch DIP 90 Wire to Board Connector 2 ~ 16 & 20 Pin Available
-
2.5mm Pitch 5-Pin PCB Wire to Board Connector 2 ~ 12 Pin Available DIP 90 Right Angle Type
-
2.5mm Pitch 7 Pin Electronic Wire to Board Connector 2 ~ 16 & 20 Pin Available DIP 180 Straight Type
-
2mm Pitch Connector 15 Pin Connector Wire to Board SMT 90
Product Details
| Place of Origin | Taiwan, China | Brand Name | Goldensunda | |
| Model Number | AD04800XX1452 | Type | Other, All Electric Area | |
| Application | PCB | Gender | Other, Male / Female |
Product Description
1. Bag (the photo for packaging reference only)

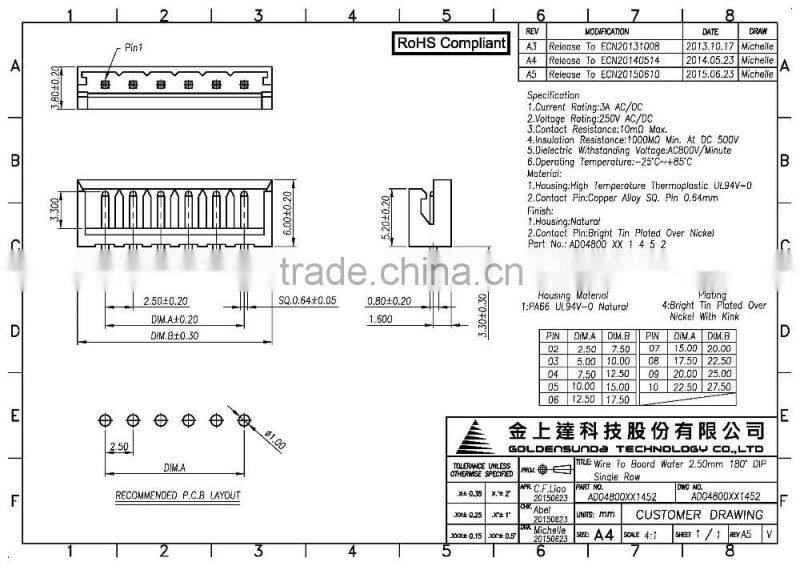

PCB 2.5mm Pitch Connector
| Specification | 1. Current Rating : 3A AC/DC |
| 2. Voltage Rating : 250V AC/DC | |
| 3. Contact Resistance : 10mΩ Max. | |
| 4. Insulation Resistance : 1000MΩ Min. At DC 500V | |
| 5. Withstanding Voltage : AC 800V/Minute | |
6. Operating Temperature : -25°C ~ +85°C | |
| Material | 1. Housing : High-Temp. Thermoplastic UL94V-0 |
| 2. Contact : Copper Alloy SQ. Pin 0.64 mm | |
| Finish | 1. Housing : Natural |
| 3. Contact : Bright Tin Plated Over Nickel |
Automotive / GPS / Consumer / DVD Players / Notebook PC / Smart Phone and Mobile Devices / Solid State Lighting / Track lighting / Linear lights / PC Industry / Communications Industry / Mobile Industry / Electronic Components
* This product is applicable for a variety of purposes, the above mentioned only represents some of the more common uses.
Goldensunda was founded in 1999, we are professional connector manufacturer for electronic components, such as Wire to Board Connectors, Wafer, Housing, Terminal, Board In, Board to Board Connectors, Pin Header, Female Header, Box Header, FPC / FFC Connectors, Wire to Wire Connectors, Input & Output (I/O) Connectors, PC Board Connectors, Wire Harness, Round Cable Assembly, FFC Cable, Flat Cable...etc. We manufacture all our products in our ISO9001:2008-certified factory in Taiwan. Goldensunda offers comprehensive connector solutions for a wide range of electronic. Quality, Efficiency, Experience, Innovation, customized OEM / ODM, Professional, Technology & Service are our competitive advantages.Furthermore, for environmental friendly issue, we are in manufacturing RoHS compliant and low/free Halogen connectors. We strive to provide a win-win situation and look forward to cooperating with our valuable customers like a partner for long term. Welcome for your inquiry, and please contact us today!
