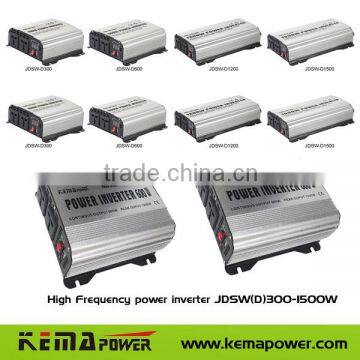

Single phase solar power inverter
Negotiable
/ Piece
1 Piece(Min. Order)
- GUANGZHOU
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | kemapower | |
| Model Number | Single phase solar power inverter JDSW 300-1500W | Output Power | Other, 300-1500W | |
| Output Type | Dual | Input Voltage | 11to 15V or 11V to 30V | |
| Output Voltage | 220V,110V | Type | DC/AC Inverters | |
| Output Frequency | 50/60±5 HZ |
Product Description
Solar power inverter
Key Features
1.Pure sine wave high frequency design
2.Small and light, high efficiency
3.Lower static current
4.Full protection for over temperature, over load and short circuit
5.With USB port
Technical Specifications
| MODEL | JDSW300 (D) | JDSW600 (D) | JDSW1200 (D) | JDSW1500 (D) |
| DC INPUT VOLTAGE | 12/24VDC | 12/24VDC | 12/24VDC | 12/24VDC |
| DC INPUT RANGE | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC |
| OUTPUT CAPACITY | 300W | 600W | 1200W | 1500W |
| SURGE CAPACITY | 2 Times | 2 Times | 2 Times | 2 Times |
| STATIC CURRENT | <0.7A | <0.85A | <0.9A | <0.95A |
| THD | ≤5% | |||
| EFFICIENCY(FULL LOAD ) | ≥85% | |||
| MAX EFFICIENCY | ≥90% | |||
| OUTPUT VOLTAGE(NO LOAD ) | 110V or 220V | |||
| OUTPUT FREQUENCY | 50 or 60HZ±0.5HZ | |||
| USB OUTPUT | 5V 500Ma | |||
| BATTERY LOW ALARM | 10.2V-10.8V or 20.4V-21.6V | |||
| BATTERY LOW CUT POINT | 9.2V-9.8V or18.4V-19.6V | |||
| RESUME VOLTAGE | 11.7V-12.3V or 23.4V-24.6V | |||
| SHUT OFF VOLTAGE AT OVER-VOLTAGE | 15.0V-16.0V or 30V-32V | |||
| OVER LOAD PROTECTION | Yes | |||
| OVERCURRENT PROTECTION | Yes | |||
| SHORT CUICIRT | Yes | |||
| OVER TEMP. PROTECTION | Yes | |||
| LED DISPLAY | Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D | |||
| Digital display | AC ON (888), I/P VAC (U) O/P Watts (P), JDSW-D only | |||
| Product Size(mm) | 175x175x70mm | 200x175x70mm | 310x175x70mm | 310x175x70mm |
| Carton size(mm) | 660x255x245mm | 660x280x245mm | 400x395mmx245mm | 400x395x245mm |
| Carton weight (kg) | 11 | 13 | 13.5 | 13.5 |
| PCS /CTN | 5 | 5 | 3 | 3 |
