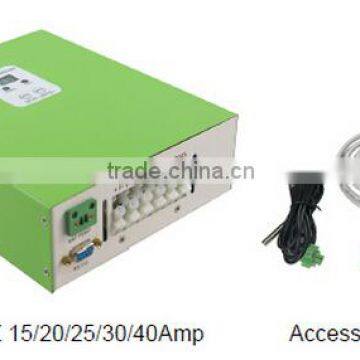

MPPT48Z-E Series Mppt Solar Charge Controller

FOB Price

US$ 48.00 - 48.00 / Piece

50 Pieces(Min. Order)

Port Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	KEMAPOWER
Model Number	MPPT48Z-E	Rated Voltage	Other, 12/24/48V
Maximum Current	15/20/25/30/40A

Product Description

Key Features
1.LCD display MPPT(Maximum Power Point Tracking) solar charge controller
2.12V/24V/48VDC automatic recognition, Max PV input 100VDC
3.Three Stages charging, fast charge/Constant charge/Floating charging
4.Vented, Sealed, Gel, NiCd battery or customer other battery selectable.
5.User-Defined charge voltage by software
6.LCD+LED Display the input and output parameter of PV and battery
7.with Temperature Compensation
8.RS232 Communication For Operating and testing
9.Extensible LAN remote control optional

Technical Specifications

Item	Model	MPPT48Z-15E	MPPT48Z-20E	MPPT48Z-25E	MPPT48Z-30E	MPPT48Z-40E
Output	System DC Voltage	DC12V/24V/48V Automatic recognition
	Output VDC Precision	≤±1.5%
	Rated Output Current	15A	20A	25A	30A	40A
	Current-limiting Protection	20A	25A	30A	35A	45A
	Over Charge Protection	14.6V For 12VDC System, 2 for 24VDC, 4 For 48VDC
	Selectable battery	Sealed lead acid, vented, Gel, NiCd, or defined by user
	Temperature Compensation	14.2V-(The highest temperature-25℃)*0.3
Load output	Voltage	Follow the battery bank voltage
	Current	Max 30AMP,
Input	MPPT Range	DC14V~DC100V For 12VDC system, DC30~DC100V For 24VDC, DC60~DC100V For 48VDC
	12VDC Max PV input (W)	213	284	355	426	568
	24VDC Max PV input (W)	426	568	710	852	1136
	48VDC Max PV input (W)	852	1136	1420	1704	2272
	Low Voltage Input Protection	DC14V for 12V system,DC30V for 24V ,DC60V for 48V
	Low Voltage Input Recovery	DC18V for 12V system,DC34V for 24V ,DC65V for 48V
	Overvoltage Protection	110VDC
	Overvoltage Recovery	100VDC
Display	LED digital tube display	Battery Voltage,Charge current
	LED light display	Charging indicator light, LOAD indicator light
Communication		RS232 Communication by PC,
Protection		Input Low Voltage Over voltage and over capacity Protection, output low Voltage over voltage protection, Over Temperature protection; Reverse polarity and short circuit by Fuse
IP grade		IP25
Operating Temperature
Physical	Product size	D205W168H60 mm
	Package size	D265W196H110mm
	G.N/N.G(kg)	2/1.8KG
