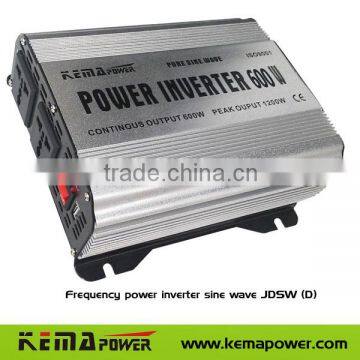

High Frequency power inverter JDSW (D) 300-1500W
Negotiable
/ Piece
1 Piece(Min. Order)
- SHENZHEN/GUANGZHOU
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Kemapower | |
| Model Number | JDSW300 JDSW(D)600 JDSW(D)1200 JDSW(D)1500 | Output Power | Other, 500W-1500W | |
| Output Type | Dual | Input Voltage | 11V-15VDC or 11-30VDC | |
| Output Voltage | 110V or 220V | Type | DC/AC Inverters | |
| Output Frequency | 50 /60HZ±0.5HZ |
Product Description
Key Features :
1.Pure sine wave high frequency design
2.Small and light, high efficiency
3.Lower static current
4.Full protection for over temperature, over load and short circuit
5.With USB port
Technical Specifications
| Model | JDSW300 (D) | JDSW600 (D) | JDSW1200 (D) | JDSW1500 (D) |
| DC Input Range | 12/24VDC | 12/24VDC | 12/24VDC | 12/24VDC |
| DC Input Range | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC |
| Output Capacity | 300W | 600W | 1200W | 1500W |
| Surge Capacity | 2 Times | 2 Times | 2 Times | 2 Times |
| Static Current | 0.7A | 0.85A | 0.9A | 0.95A |
| Thd | ≤5% | |||
| Efficiency(Full Load ) | ≥85% | |||
| Max Efficiency | ≥90% | |||
| Output Voltage(NO Load ) | 110V or 220V | |||
| Output Frequency | 50 or 60HZ±0.5HZ | |||
| USB Output | 5V 500Ma | |||
| Battery Low Alarm | 10.2V-10.8V or 20.4V-21.6V | |||
| Battery Low Cut Point | 9.2V-9.8V or18.4V-19.6V | |||
| Resume Voltage | 11.7V-12.3V or 23.4V-24.6V | |||
| Shut Off Voltage At Over-Voltage | 15.0V-16.0V or 30V-32V | |||
| Over Load Protection | Yes | |||
| OverCurrent Protection | Yes | |||
| Short Cuicurt | Yes | |||
| Over Temp. Protection | Yes | |||
| Led Display | Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D | |||
| Digital display | AC ON (888), I/P VAC (U) O/P Watts (P), JDSW-D only | |||
| Product Size(mm) | 175x175x70 | 200x175x70 | 310x175x70 | 310x175x70 |
| Carton size(mm) | 660x255x245 | 660x280x245 | 400x395x245 | 400x395x245 |
| Carton weight (kg) | 11 | 13 | 13.5 | 13.5 |
| PCS /CTN | 5 | 5 | 3 | 3 |
