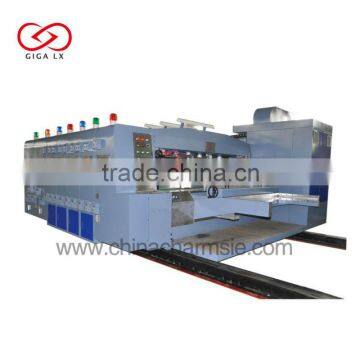

GIGA LX-308 Automatic Carton Box Cutting Machine Prices

Specifications

LX308  Flexo Printing Slotting and Automatic Die Cutting Machine

Got CE certification

Carton Box Cutting Machine Main Functions:

1. Lx308Suitable for middling and Small scale carton factory. All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62 lx308
2. Back-pushing suck blower feeding system
3. CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
4. Functions of intelligent zero returning and memory reset, Memory order 999 is for option.
5. Lx308Touch screen and electric control dual system.High quality materials and fittings.
6. The transmission system adopts two oil pumps circulating lubrication

Feeding Unit.

1.  Servo control Lead edge feeder--patent #ZL2005 2 0045628.x (Back-pushing suck blower feeding system  is option);
2. Servo motor-quick react, lx308precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
3. Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;
4. Pressure-free stretching feeding mechanism is the option;

We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for boxing machine LX-308N, LX-608CN or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.

Printing Unit

1. Forme changing both foot switch, and/or electric control (forward / backward run), Anilox roller auto lifting device synchronous working with paper feeding system
2. Forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface, lx307Dynamic and static balancing make steadily running, Hanging forme, make installation easy and quick, Planetary gear phasing structure
3. Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control.
4. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition

Slotting Unit

1.  Pre-scoring wheel: Pre-scored paperboard will not crush
2. Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
3. 7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth
4. Bi-plate trimming knives with sharpened, endurable teeth
5. Aluminium hand hole punch device

 Die cutting machine unit

1. Unique speed difference compensation device makes the anvil roller slide together with mould roller so that the surface speed of anvil roller complies with it of the mould roller, to make a perfect.CNC adjusting difference system for rotary die cutting machine, which is for  option

• Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism prolong the life of the cutting mould and urethane rubber
• Rotary die cutting machine anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface.

Stacking Unit

1. Connection arm has manual and automatic operation methods
2. Tension of the driving belt of connection arm can be adjusted alone; Stacking height: 1600 mm, Anti slipping belt used in the transport bed.
3. Platform elevation and transmission motor has braking function, Carton Box Making Machine Prices are goods.
4. A pneumatic controlled plate will pop-up to hold the coming substrate when the pre-set height reached

*Subject to change and improvement without notice,
